Iliad 53F (2026)
Short Description

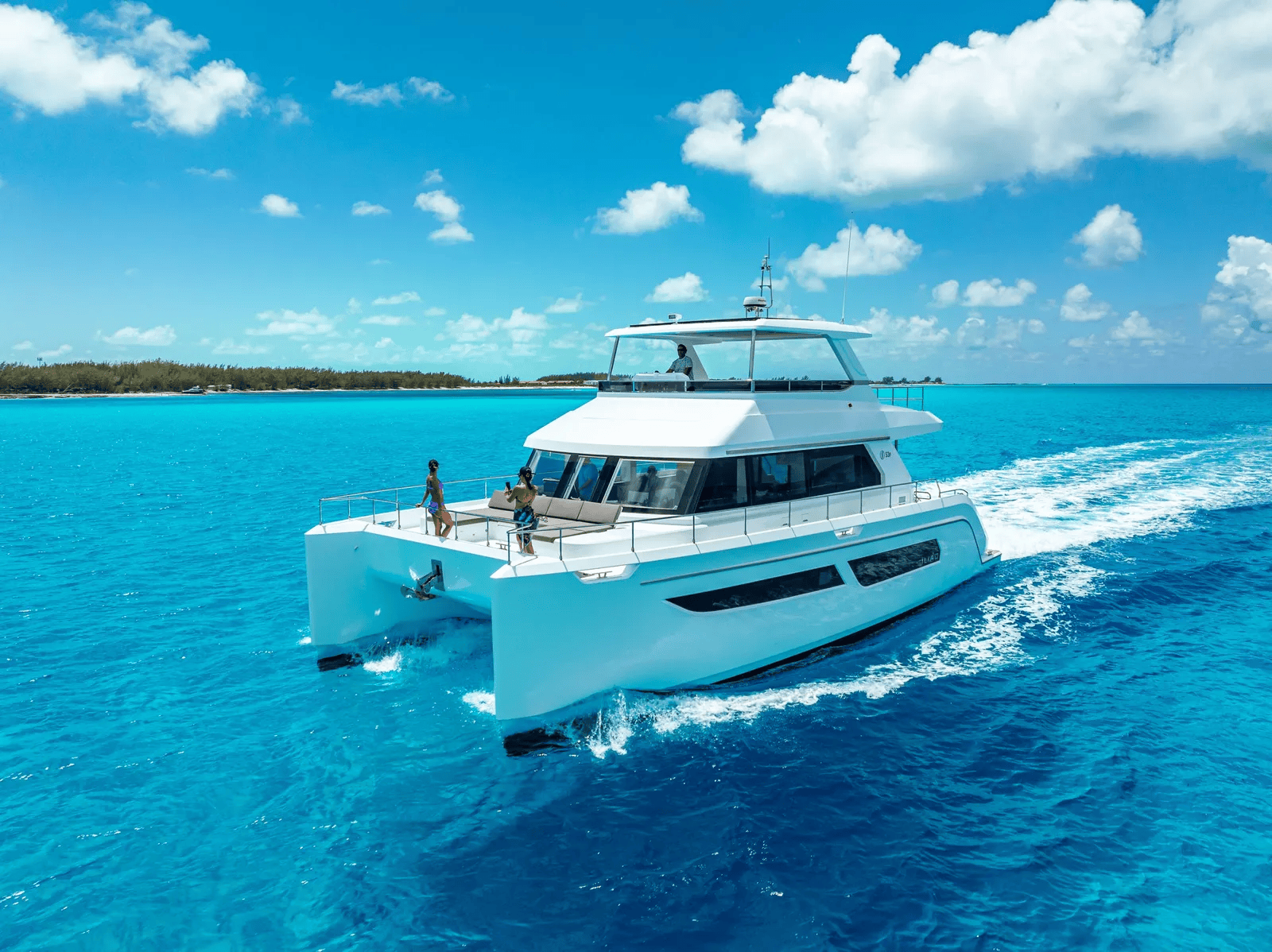

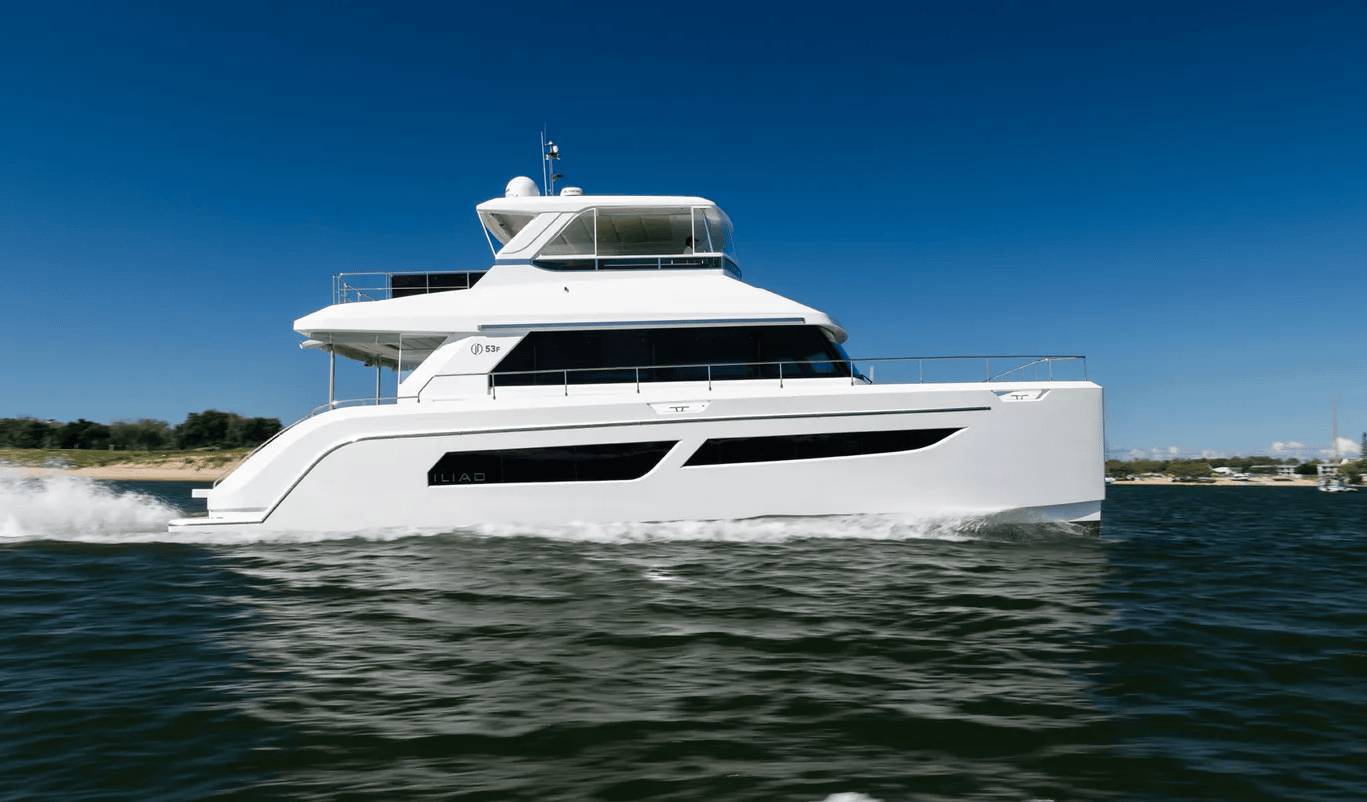

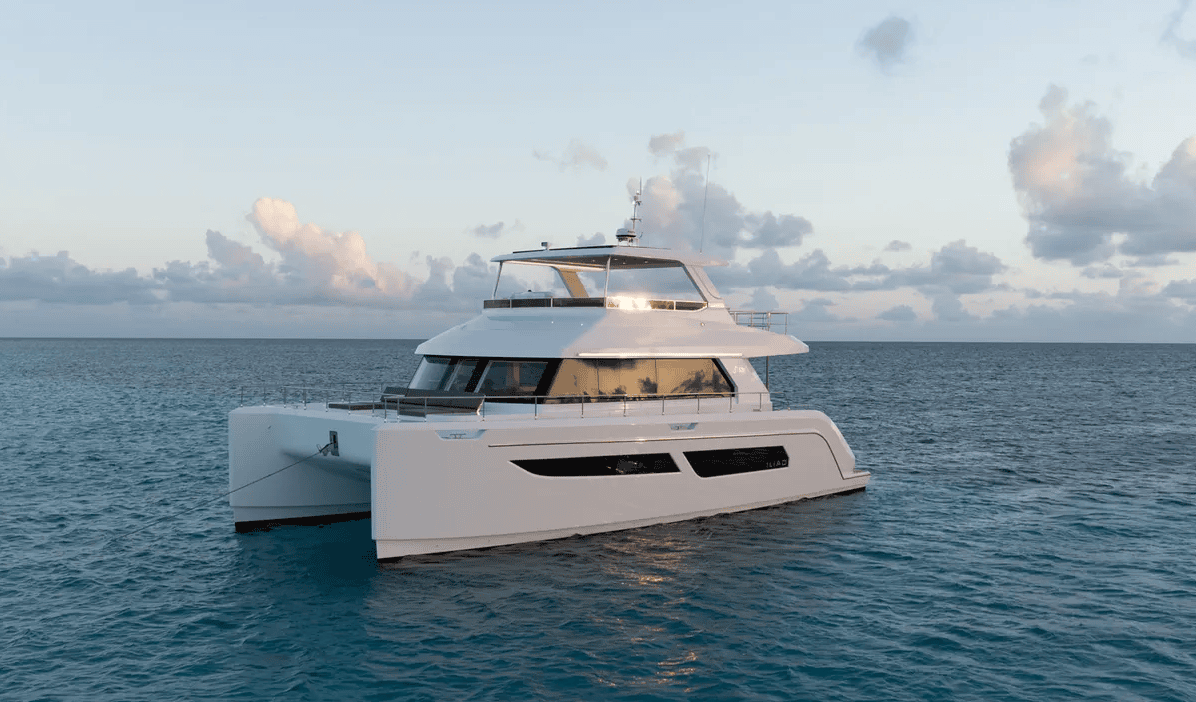

Winner of the prestigious 2024 Multihull of the Year award (MultiPower category), the exceptional ILIAD 53F sets a new standard in power catamarans.
The elegant motor yacht features one of the highest bridgedeck clearances in her market segment, with a high freeboard to deliver comfortable cruising in challenging offshore conditions.

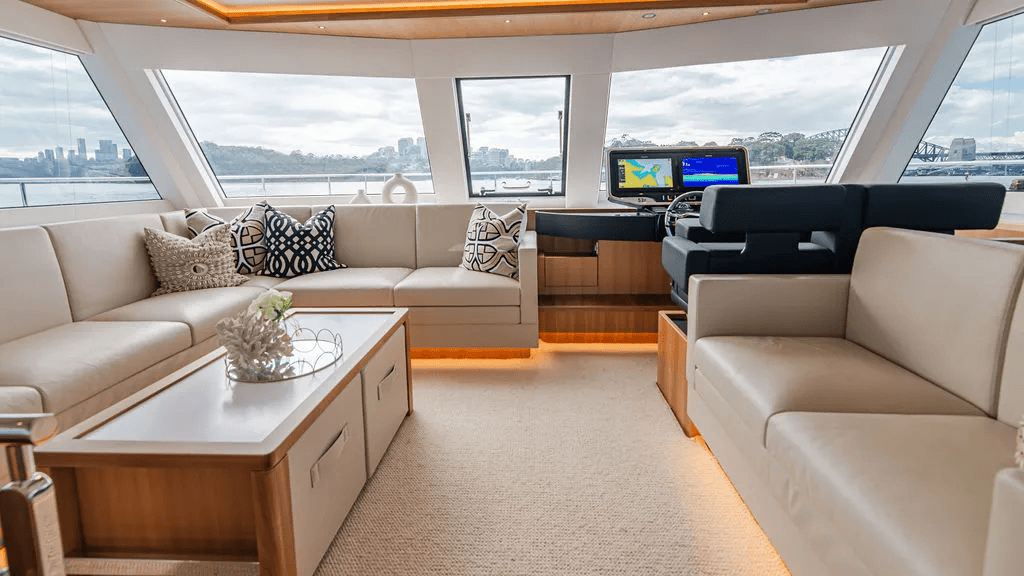

The ILIAD 53F features outstanding interior living space, including a generous forward lounge, internal helm station and dining for 6-8 people. Panoramic windows deliver beautiful natural light and superb views from every angle.

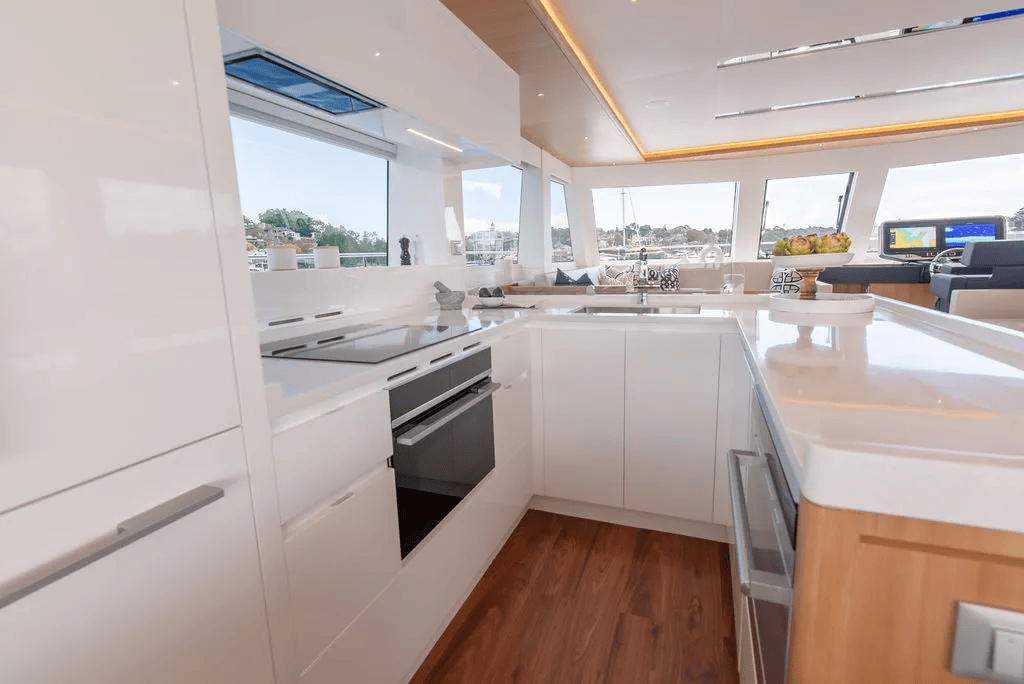

Equipped with the finest European appliances, the galley is designed for stylish entertaining, and her expansive benches, full-sized refrigerator and freezer, and remarkable storage make her ideal for extended cruising adventures.

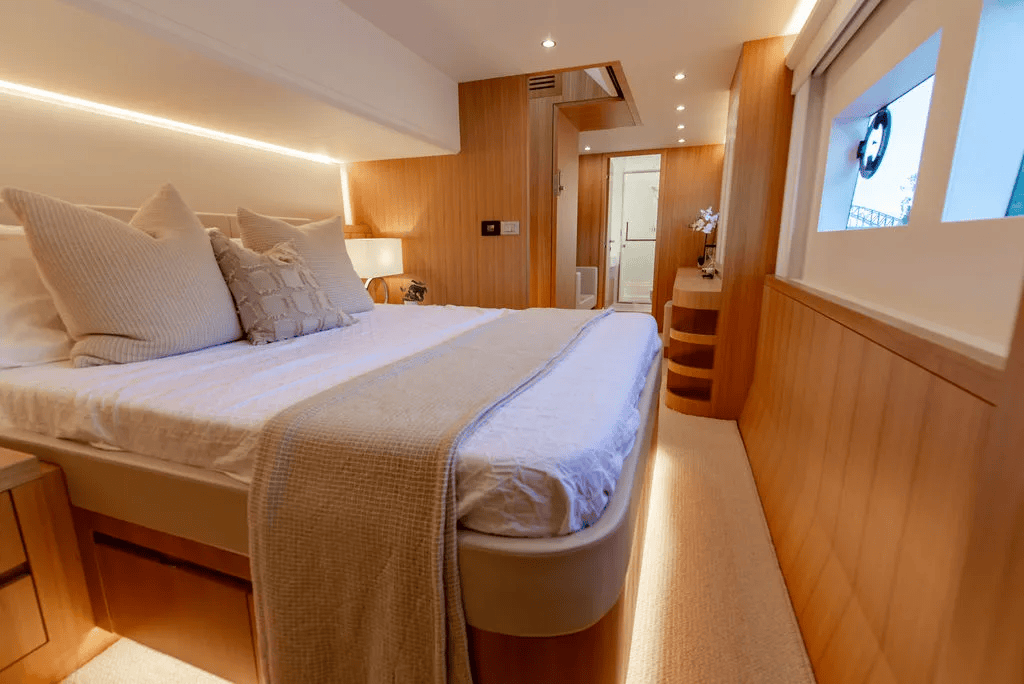

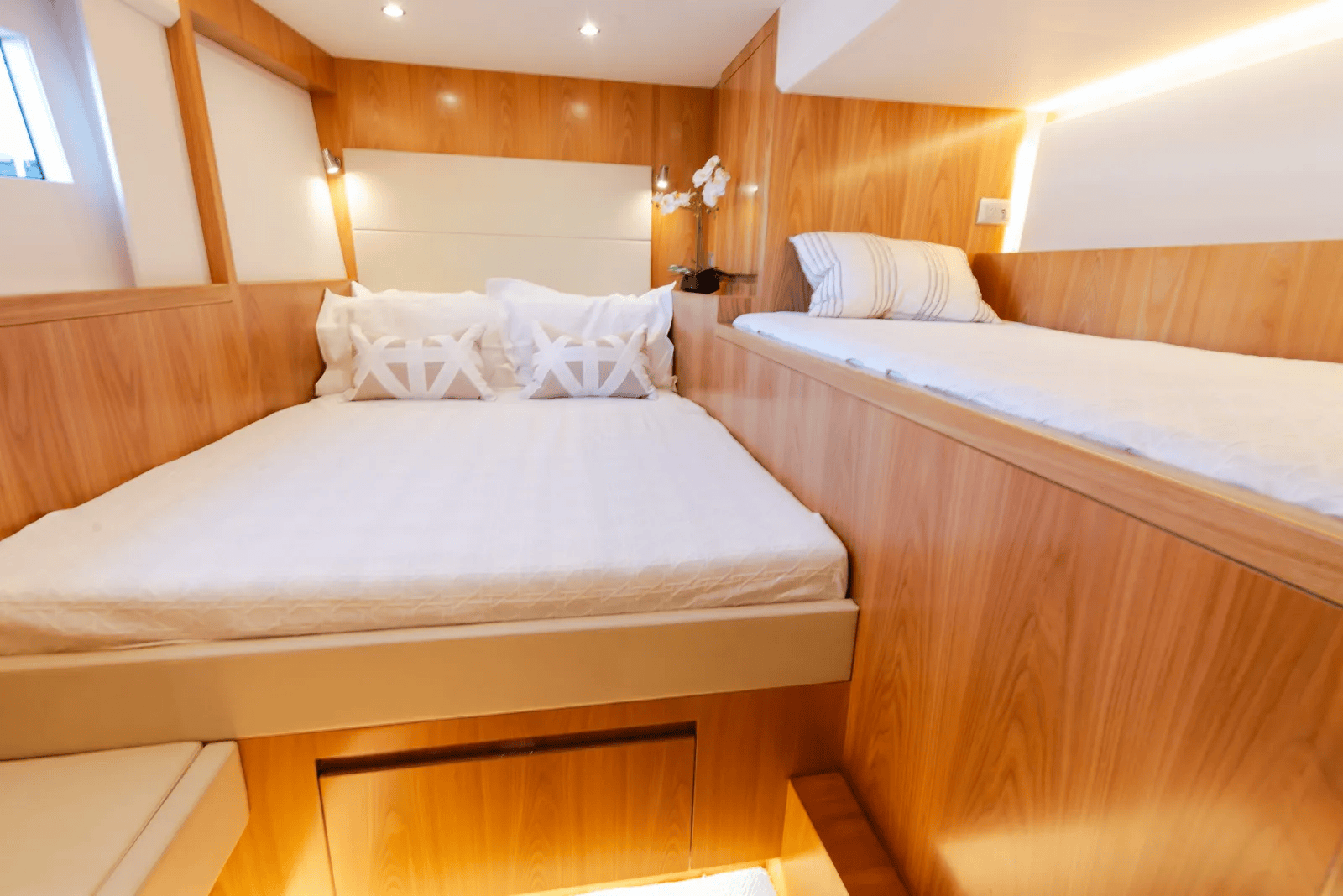

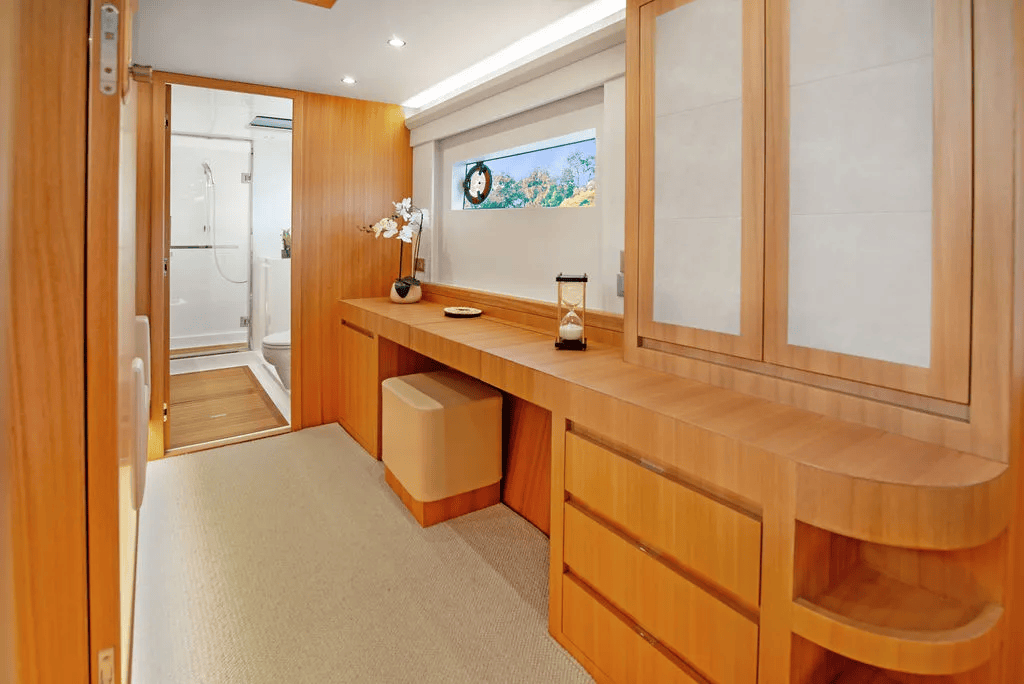

Accommodation onboard is spacious and beautifully designed with the master suite encompassing an entire hull and featuring an oversized island queen bed, panoramic windows, generous headroom and large ensuite.

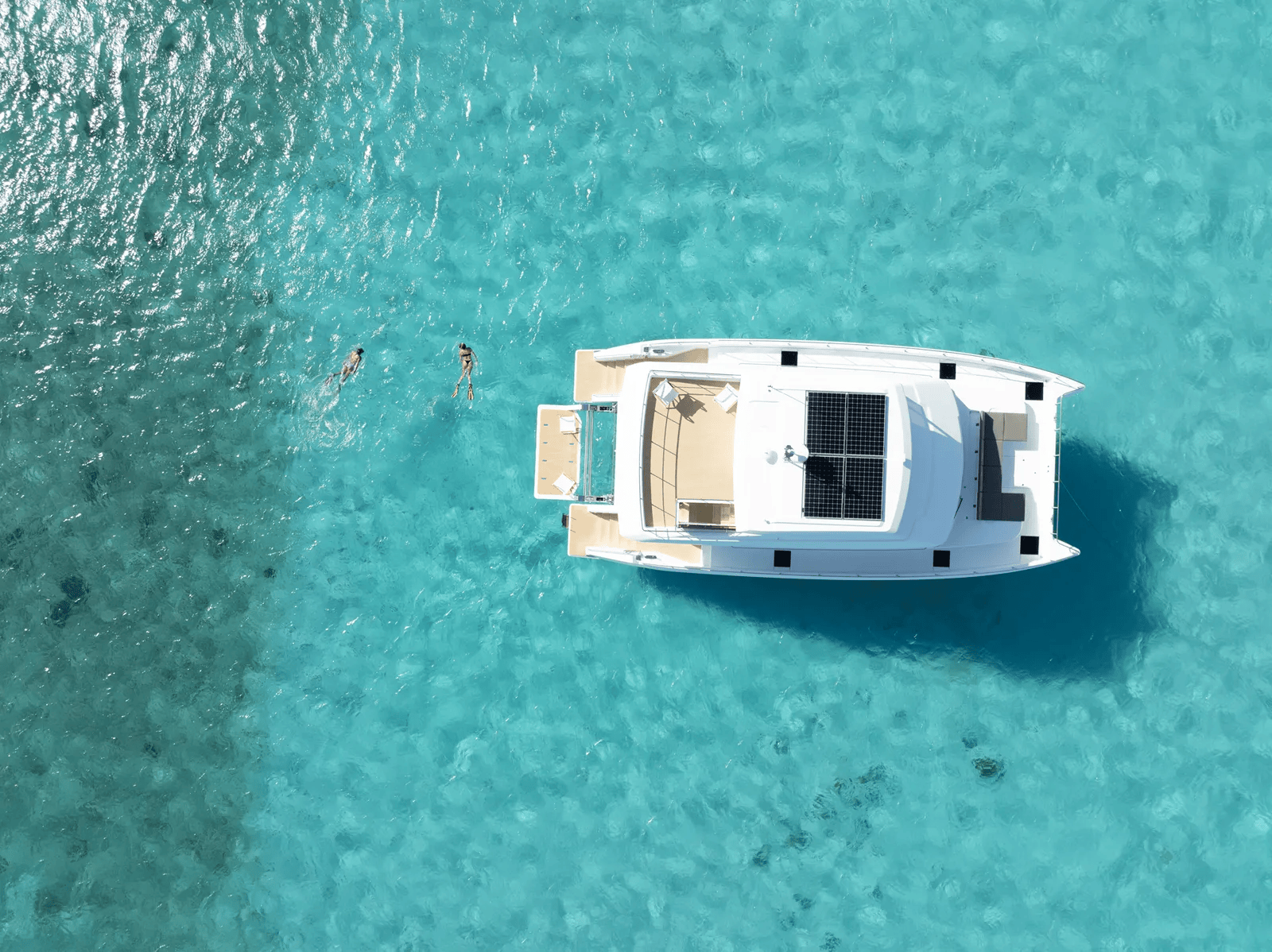

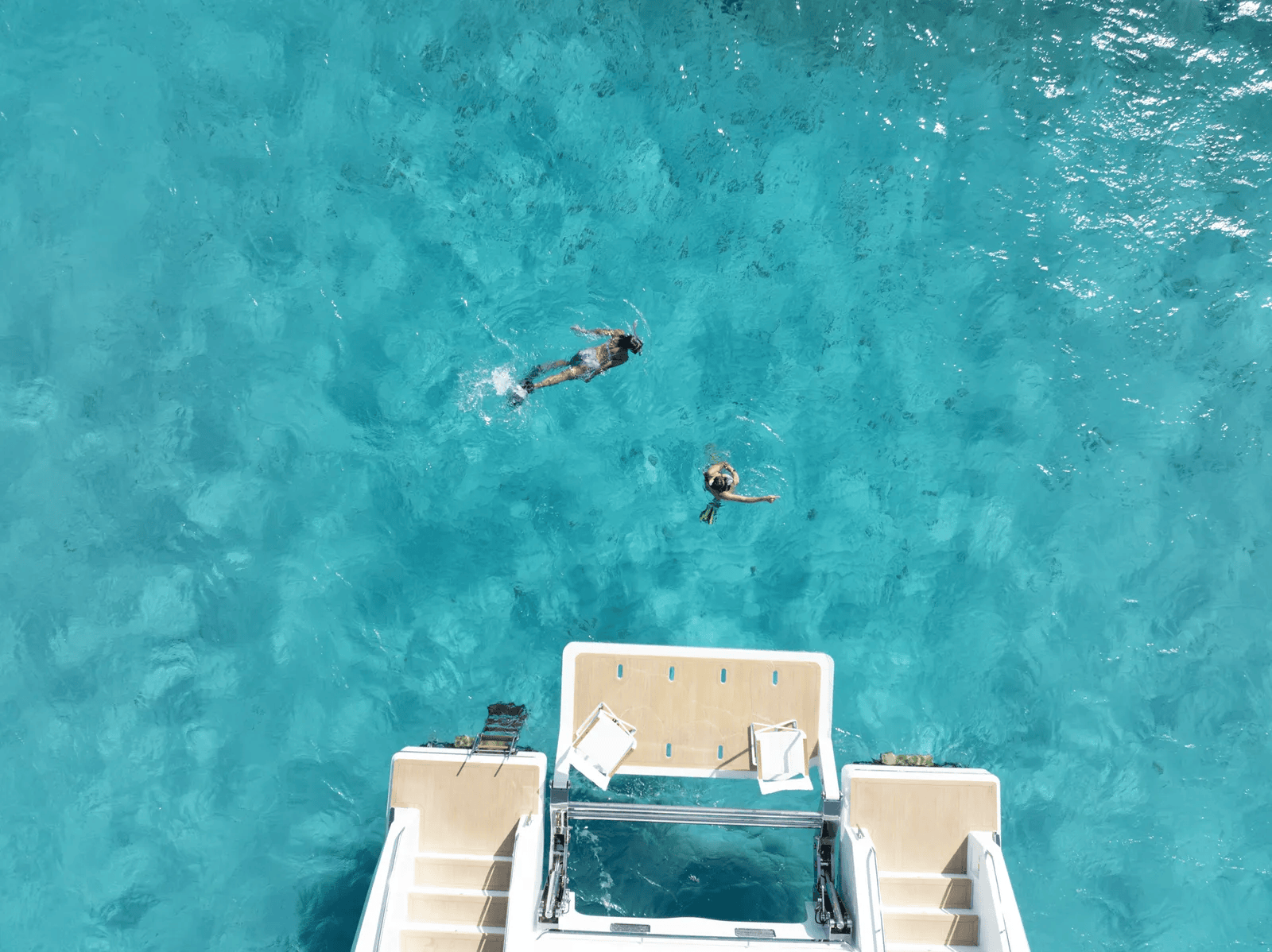

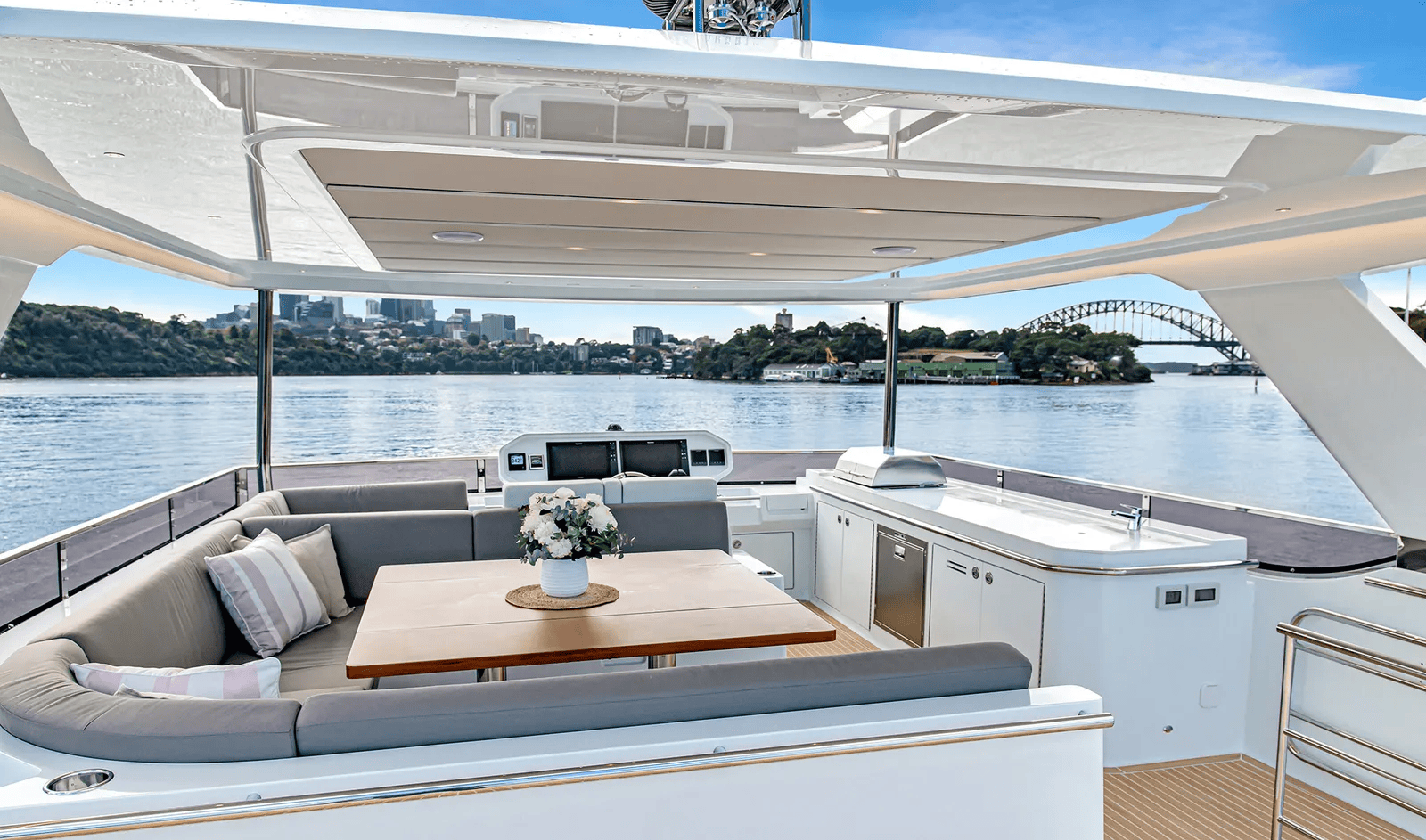

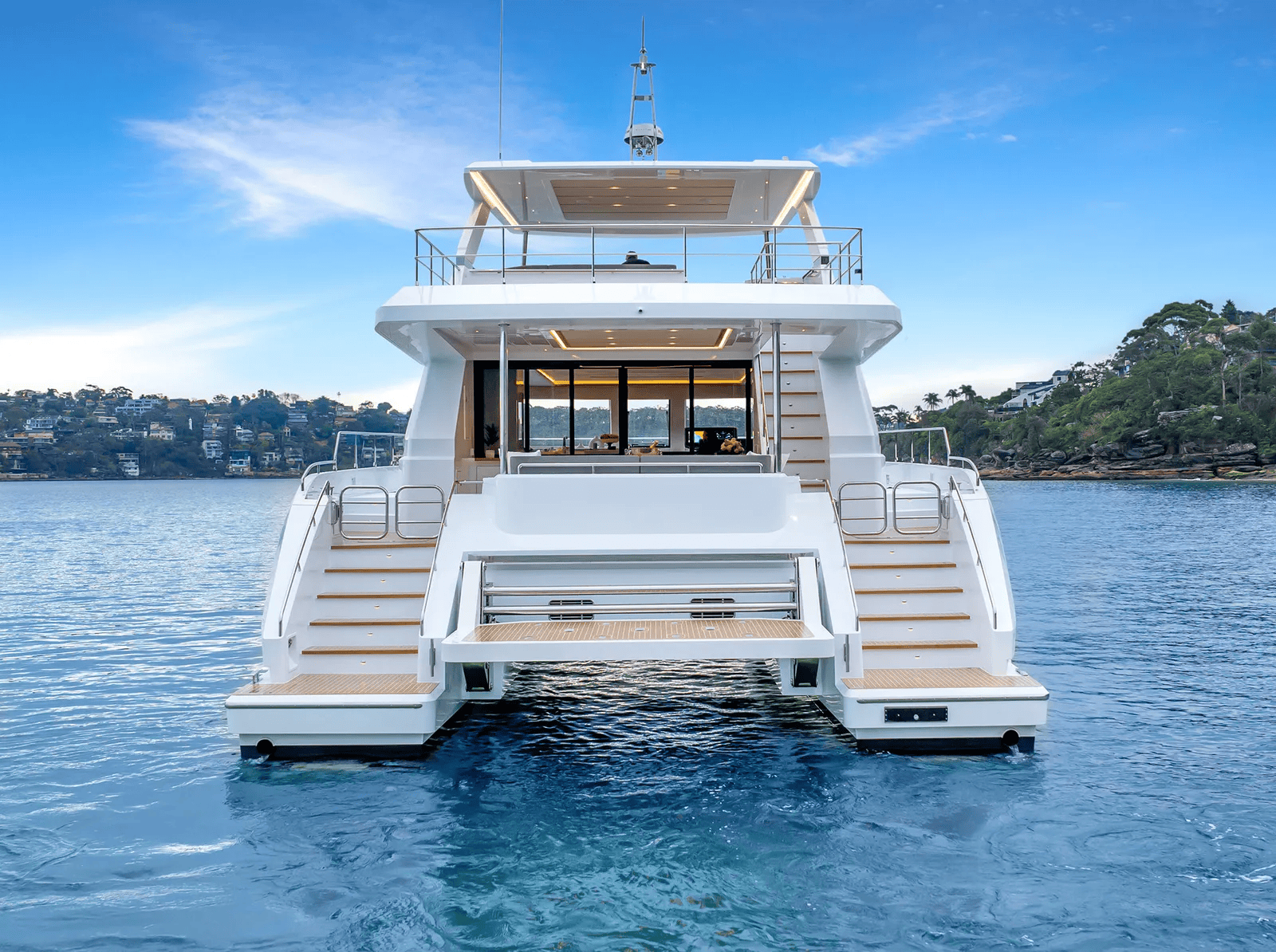

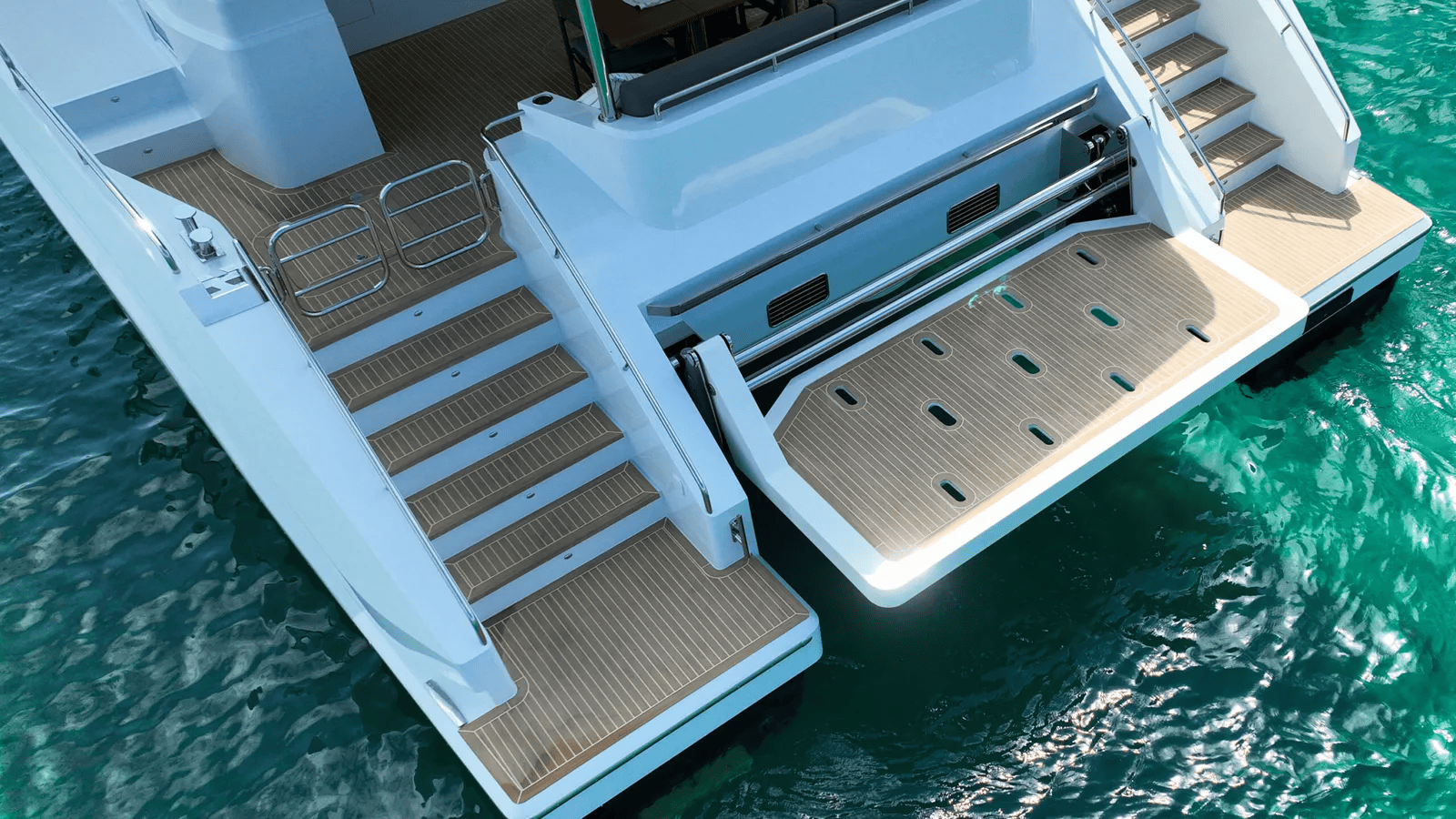

The motor yacht boasts exceptional outdoor space for entertaining and relaxing, and the cockpit features a bar area and dining setting for up to ten guests. The flybridge sets a new reference in use of space, features and comfort. The tender platform is ideal for safe sea access when swimming or diving and makes a superb sunbathing spot when the tender is deployed.

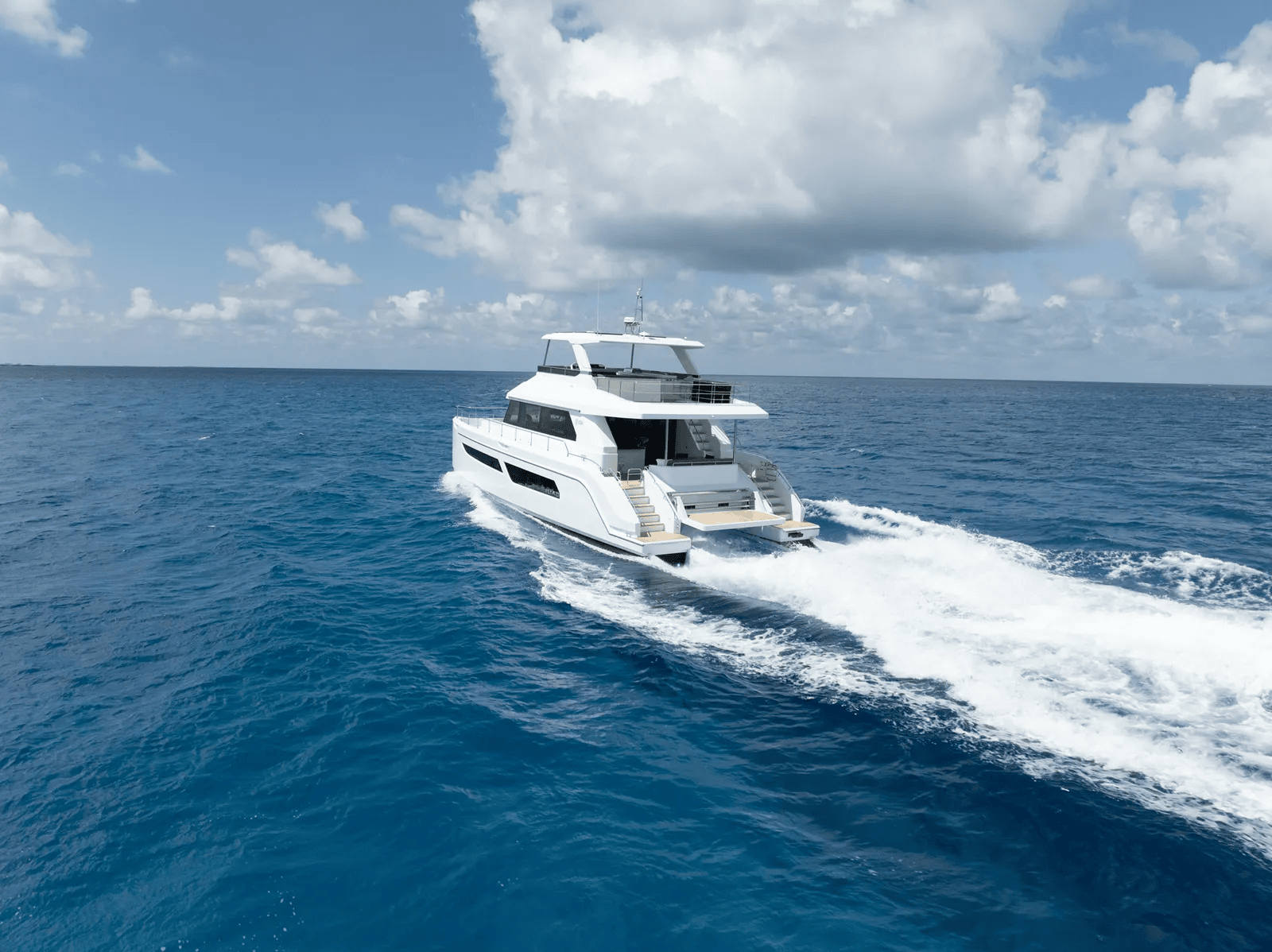

The ILIAD 53F is powered by 440hp Volvo or Yanmar engines delivering a top speed of 21 knots (lightship), and cruising long range at low speeds will afford more than 2,500 nautical miles. Upgraded Cummins 550hp engines are also available as an option.
Length
16.37 m / 53.71 ft
Beam
7.63 m / 25.03 ft
Draft
1.25 m / 4.10 ft
SEND INQUIRY
Interested? Inquire now:

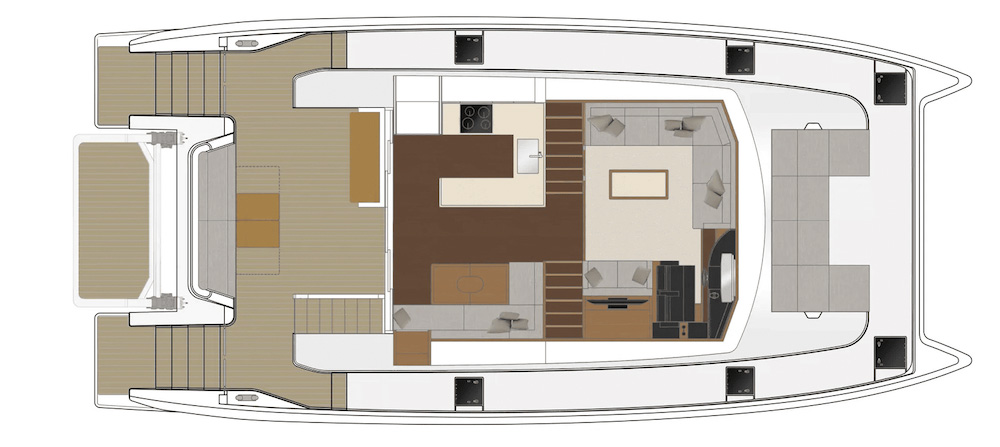

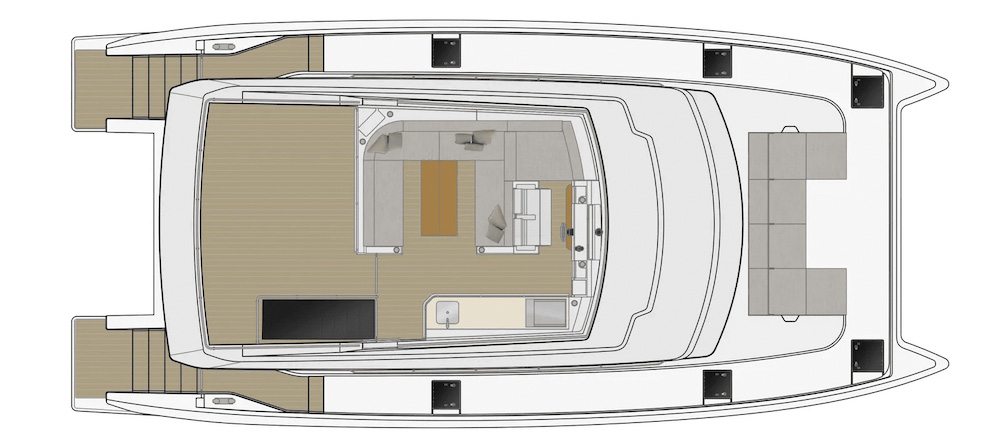

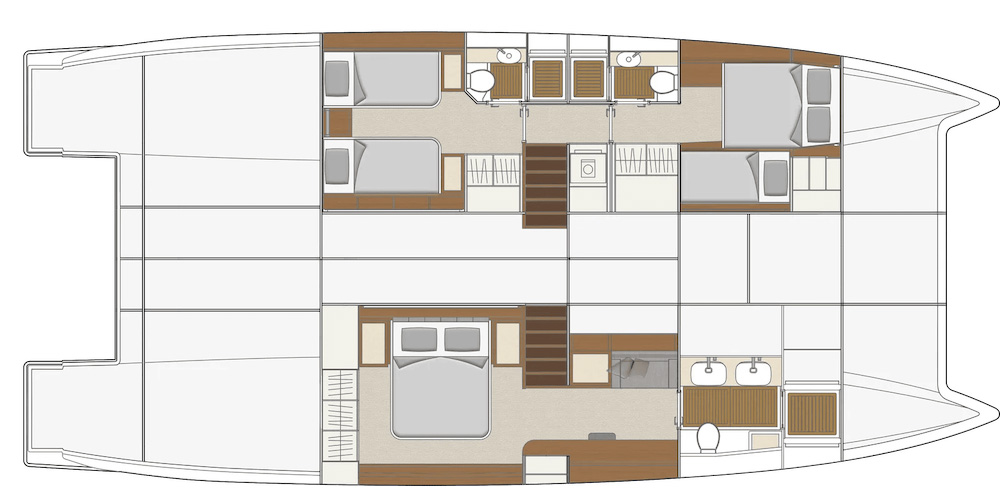

Layout
Features
Outstanding bridgedeck tunnel clearance for reduced water across the deck and more comfortable cruising in challenging offshore conditions.
Experience premium space and luxury in the spacious owner’s suite with generous headroom, ample storage and a decadent ensuite.

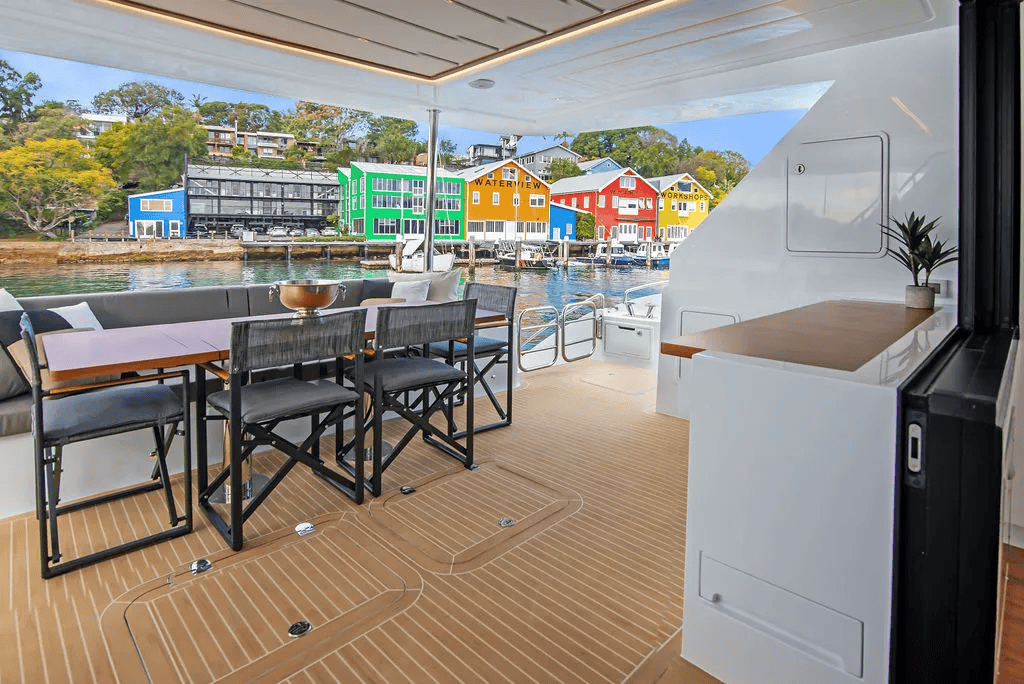

Superb alfresco area with a lounge and convertible teak table to seat 10, refrigerator, wet bar and optional BBQ and ice maker.

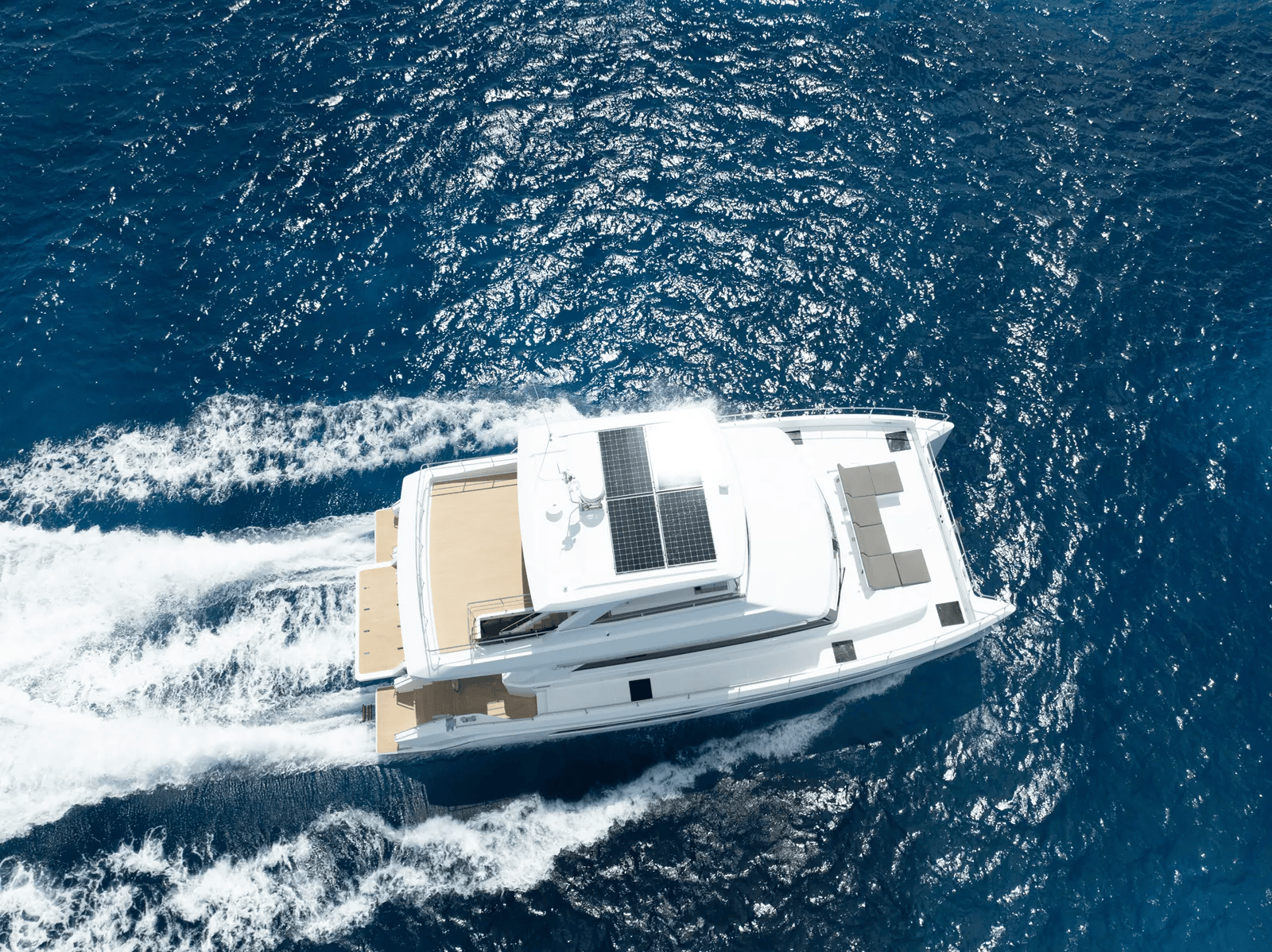

Experience seamless switching between diesel and electric propulsion modes, while the solar array and battery bank deliver quiet, pollution-free power at anchor.
Video
Standard Equipment
- Hull bottom and sides – GRP sandwich with PVC core (80–100 kg/m3)
- Main deck and deckhouse – GRP sandwich with PVC core (60 kg/m3)
- Hull lamination – vinylester resin
- Other laminates – polyester isophthalic resin
- Main laminates – infusion construction
- GRP stiffeners laminated on PVC formers by hand lay-up
- DSM gelcoat, white color
- Lower deck structural cabin sole – GRP sandwich
- Watertight and structural bulkheads – GRP sandwich with PVC core (80 kg/m3)
- Partition bulkheads – marine plywood, laminated to shell
- Independent fuel, freshwater, grey and black water tanks – aluminum 5052
- 2 x 440 HP Yanmar or Volvo engines
- Bow thruster (1)
- Onan 13.5 KW generator with muffler and gas-water separator
- Air conditioning 65,000 BTU Climma CWS (with inverter)
- 2 x engine rooms with main deck hatch access
- ER insulation – Pyrotek Sorberbarrier
- Bonding – copper strip 4 x 32 mm
- 2 x shaft drive gearboxes
- 2 x stainless duplex steel shafts, GRP sterntube
- 2 x stainless steel 316L rudders
- 2 x Cu3 fixed 4-blade propellers
- Sea-Star hydraulic helm and steering system
- Centek mufflers for engines and generator
- 2 x ER air inlets with moisture eliminators
- 2 x ER forced ventilation blowers
- 4 x fire dampers with remote shut-off
- 2 x Seafire automatic fire-suppression systems with heat sensor and alarm
- 2 x engine fuel filters
- 1 x generator fuel filter
- Fuel transfer pump, Trident 365 fuel hose
- 8 x bilge pumps with high-water alarms
- 1 x 60 L / 16 gal water heater
- 2 x freshwater pumps
- 3 x grey water sump pumps and tank
- Grey water macerator pump
- Black water macerator pump
- 3 x deck wash points (cockpit, bow, flybridge)
- 2 x ER cameras, 1 x docking camera
- Interceptors
- Autopilot with control head (Raymarine P70)
- 2 x multifunction displays Raymarine Axiom Pro 16 inch. (flybridge and main helm)
- Raymarine i70, echo sounder, GPS RS130, Raymarine backbone and cables
- AIS with antenna
- VHF with antenna
- Raymarine fish-finder CP100 + CPT120
- Raymarine Radar FLIR Quantum Q24C
- Chain counter
- Bonded electrical system with ground plate
- 24VDC, 220/110VAC systems
- 2 x AGM gel start batteries for engines (150 Ah each)
- 1 x AGM gel start battery for generator (150 Ah)
- 24V 600 Ah lithium house bank
- Victron Multiplus 24/5000/120 inverter/charger
- Victron Orion 24/12-40 converter
- Vimar switches
- BEP circuit breakers and fuses
- Quick Spa LED interior/exterior lights
- Hella Marine navigation and anchor lights
- Main AC/DC distribution panels
- 2 x Marinco shore power cords 50A
- Vimar 220/110V sockets throughout
- Aft cockpit folding-edge teak table
- Flybridge teak coffee/dining table with fixed pedestal
- Horn, remote searchlight
- 6 fenders and mooring lines
- Primer coat, black antifouling
- Propspeed paint on shafts and propellers
- Structural keel
- 7 hull portlights
- Stainless steel cap rub-rail
- 4 Lewmar deck hatches, large main deck windshield hatch

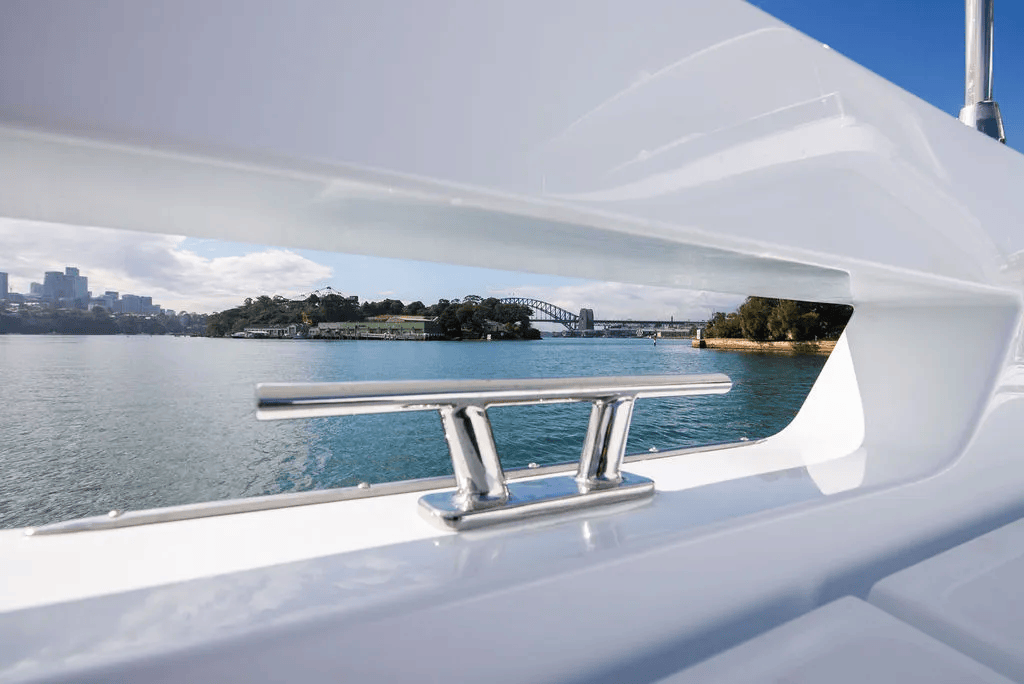

- 8 x S/S mooring cleats 13 inch., 2 x bollards 15 inch.
- Vertical windlass Quick 2000W 24V with chain counter
- S/S 316L handrails on deck and flybridge
- Stainless cockpit stern gates
- 2 x hot/cold showers at transom steps
- Swissway swim ladder with Carina railing telescopic 3+2, flush mounted
- 2 x stainless steel bow pulpits with teak seats
- GRP hard-top with S/S navigation mast
- Flybridge helm station, drawer fridge, galley cabinet with sink and faucet
- Flybridge windscreen S/S 316L with dark acrylic
- Helm engine controls and displays, tilt steering wheel
- Magnetic compass
- Outdoor Sunbrella cushions
- Molded non-skid GRP surfaces
- 6 x Aqualuma underwater lights (blue/white)
- Flexiteek laid deck (steps, cockpit, stairs, flybridge)
- Flybridge gate to aft upper deck
- Lewmar DTX anchor 40 kg / 88 lbs with 60 m / 196 ft x 10 mm chain
- Stainless davit lifting system with 250 kg electric winch
- Glomex TV antenna
- Combination washer/dryer
- Fusion entertainment system (saloon and cockpit speakers, remote, amp, subwoofer)
- TV lift in saloon for 50 inch. TV (TV not included)
- Fridge-freezer, induction cooktop, oven-microwave
- S/S 316L interior handrails
- LG HI-MACS solid surface galley/bathroom tops
- BLUM drawer and hinge systems
- Parquet laminate flooring (main deck galley/dinette)
- Teak flooring in bathrooms
- Timber veneer furniture and décor
- Ceiling and wall panels in synthetic leather
- Sofas/seats upholstered in Ultraleather synthetic leather
- Saloon coffee table with ottomans, dinette table with stools and drawer storage
- Liquor cabinet (Galley Option A)
- Dark leather helm and TV cabinet trim
- Manual blinds on hull windows, motorized blinds on main deck
- Memory foam mattresses
- Galley stainless sink with hot/cold faucet, hob hood
- Bathroom fans, Planus electric toilets with macerator, ceramic washbasins
- Kohler fixtures, separate shower stalls with teak grating
- Carpet on lower decks and forward saloon
- 1-drawer 70 L fridge-freezer in galley bench

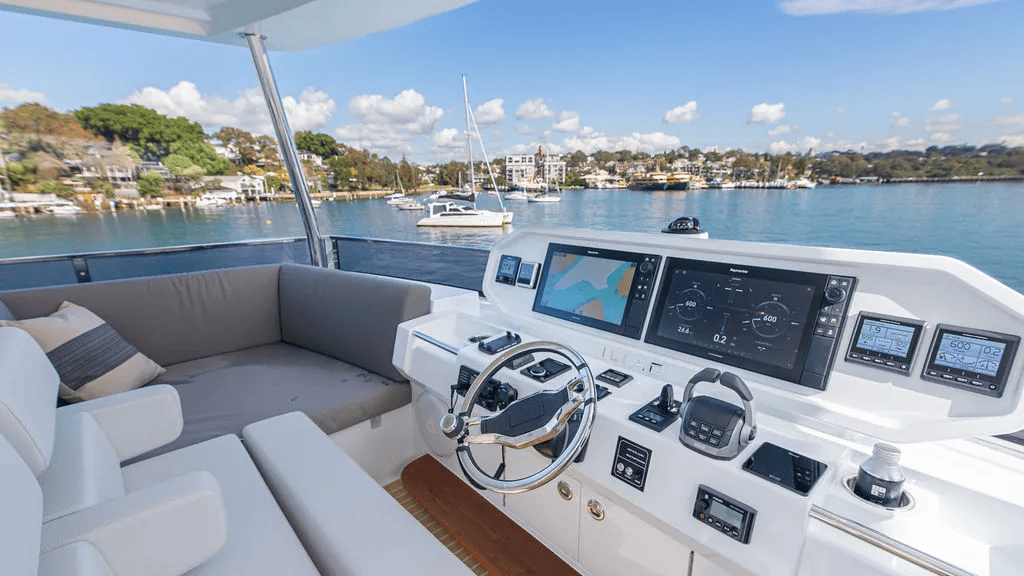

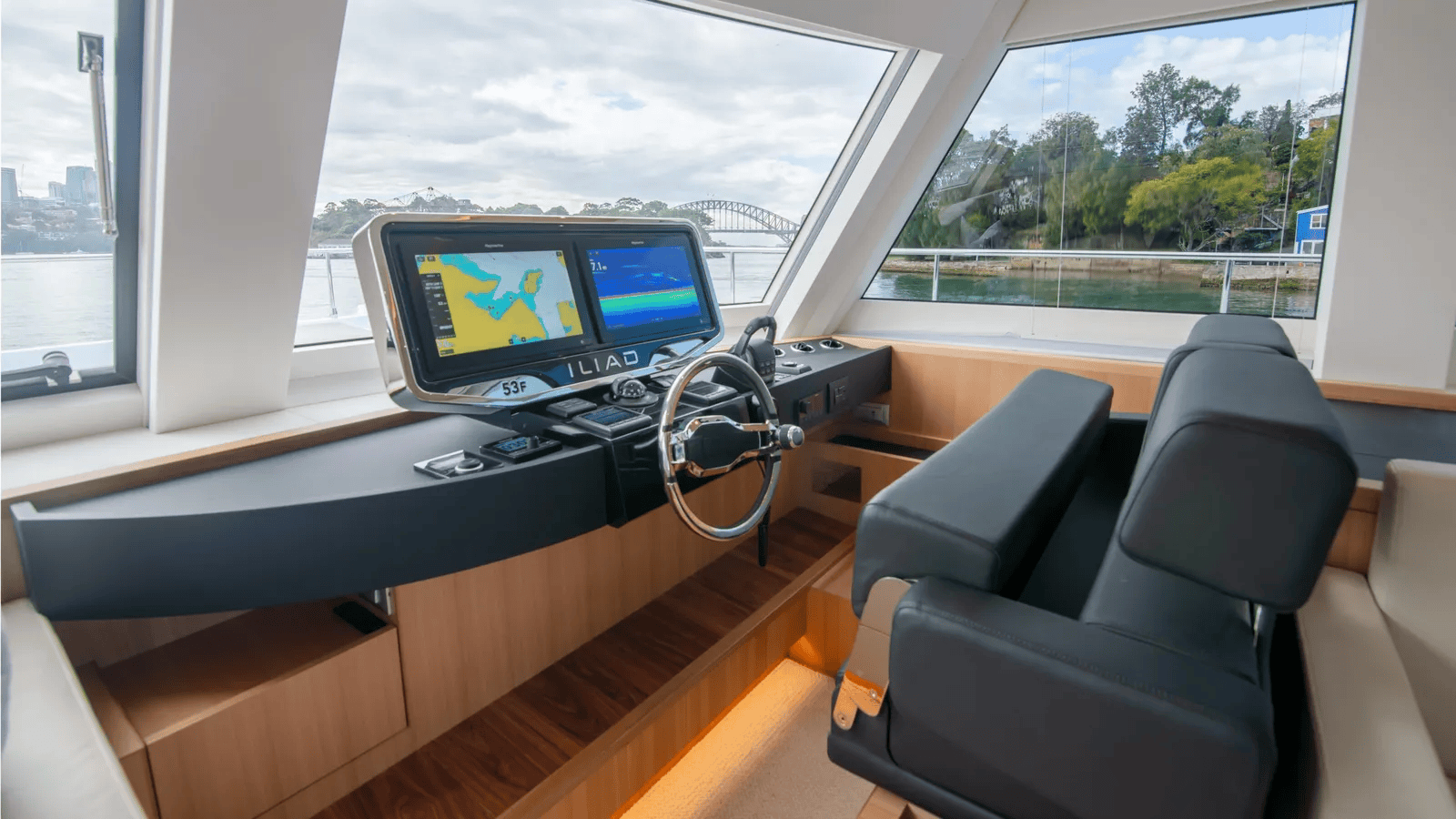

- Main helm station with full instrumentation, wiper, double Besenzoni Dragonfly adjustable helm seat
- Transport cradles
- Launching and export formalities
- Shrink wrap for shipping
- Owner’s Manual
Optional Equipment
- Upgrade to Volvo 480hp
- Upgrade Cummins QSB6.7 480hp
- Upgrade to Cummins 6.7 550hp
- Cockpit station (throttle and thruster controls) port side
- Cockpit station (throttle and thruster controls) stbd side
- 50 Hz (220v) electrical system
- 60Hz (110v) electrical system
- Generator Onan 17.5 Kw (Change from Onan 13.5kW)
- Solar Panels 1,600 W (on hard-top)
- Hydraulic stern platform (vertical up/down) with teak finishes (replacing standard)
- Hydraulic lifting stern platform (extendable up/down) with teak finishes (replacing standard)
- Flybridge hydraulic crane for tender Besenzoni or similar 400kg
- Watermaker Sea Recovery Aqua Whisper mini 1400-2 211 L/h
- Additional 40m of anchor chain. (100 total)
- Windlass upgrade to 2300w
- 2nd 16 inch. Raymarine Axiom Pro plotter at lower helm station (in addition to 1 x 16 inch. standard lower helm plotter)
- 2nd 16 inch. Raymarine Axiom Pro plotter in flybridge helm (in addition to 1 x 16 inch. standard flybridge plotter)
- 2 x 19 inch. Raymarine Axiom Pro XL flybridge plotters (includes credit for 1 x 16 inch. standard flybridge plotter)
- Teak deck (cockpit + stairs + swim platforms); includes a credit for the standard synthetic teak option
- Teak deck (flybridge); includes a credit for the standard synthetic teak option
- Aft cockpit dining table GRP
- Flybridge coffee/dining table GRP (with fixed pedestal)
- Dinghy chocks on flybridge with adjustable supports
- Flybridge aft removable handrails (needed when selecting flybridge crane)
- Flybridge stairs hatch
- Rope cutters (2)
- Credit for no interior lower helm station (includes controls and navigation instruments)
- Interior helm: replace fixed seating with 2 x pilot seats on pedestal (lift, turn, slide movements); Besenzoni S315 or similar
- Interior helm: replace fixed seating with desk and 1 x pilot seat on pedestal (lift, turn, slide movements); Besenzoni S315 or similar
- Electric grill Kenyon Texan, stainless steel, with hood (flybridge galley)
- Ice maker Vitrifrigo IM XT OCX2 HYDRO (flybridge galley)
- Recess, wiring and bracket suitable for 40 inch. television in master cabin set into wardrobe space (television not included)
- Recess, wiring and bracket suitable for 32 inch. television in master cabin; concealed in center cupboards opposite stairs (television not included)
- Hob (gas) Fisher Paykel 60cm
- Gas locker (needed if selecting gas hob)
- Electric oven Siemens (alternative to standard oven/microwave combination unit)
- Microwave oven Siemens (alternative to standard oven/microwave combination unit)
- Dishwasher (Bosch or similar)
- Change layout to 4 cabins (all with ensuite bathrooms with separate shower stalls)
- Crew cabin in bow compartment, single bed (includes toilet and sink, and air conditioning)
