€799.000
VAT excluded
Short Description

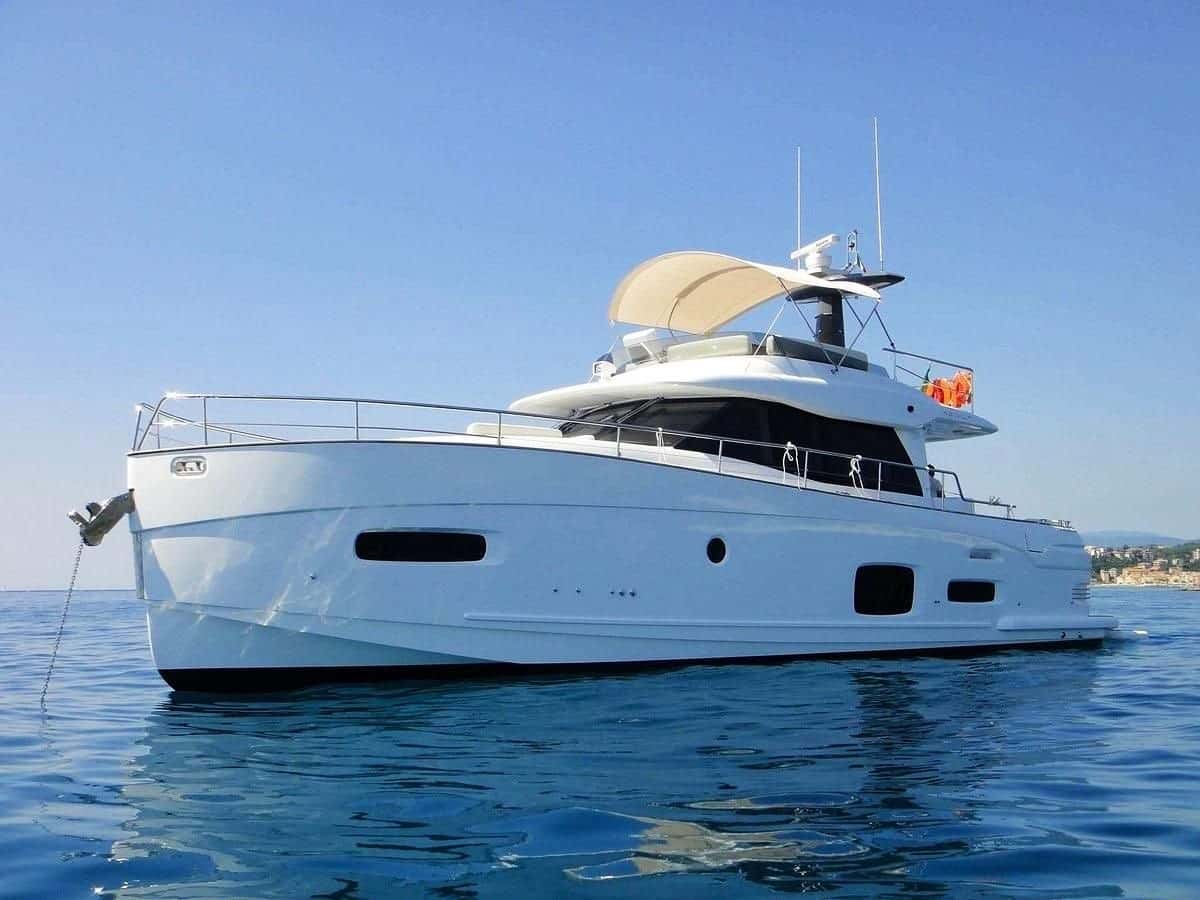

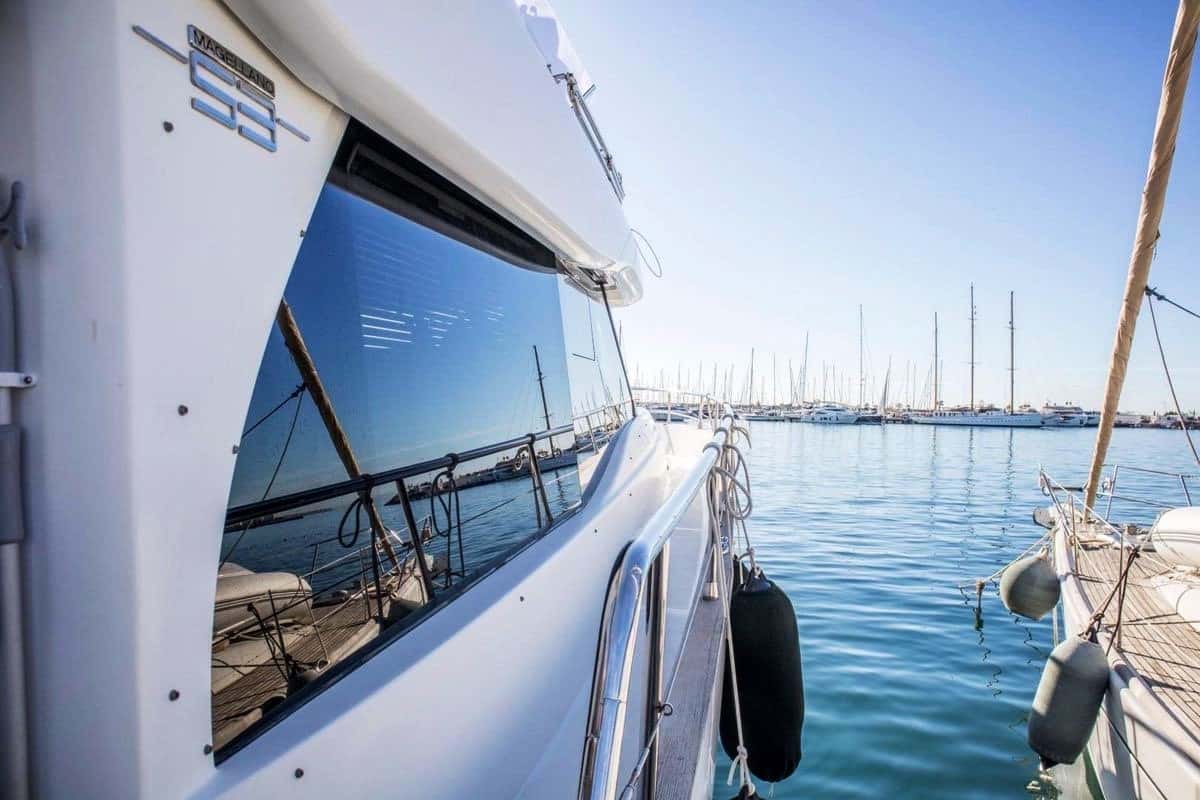

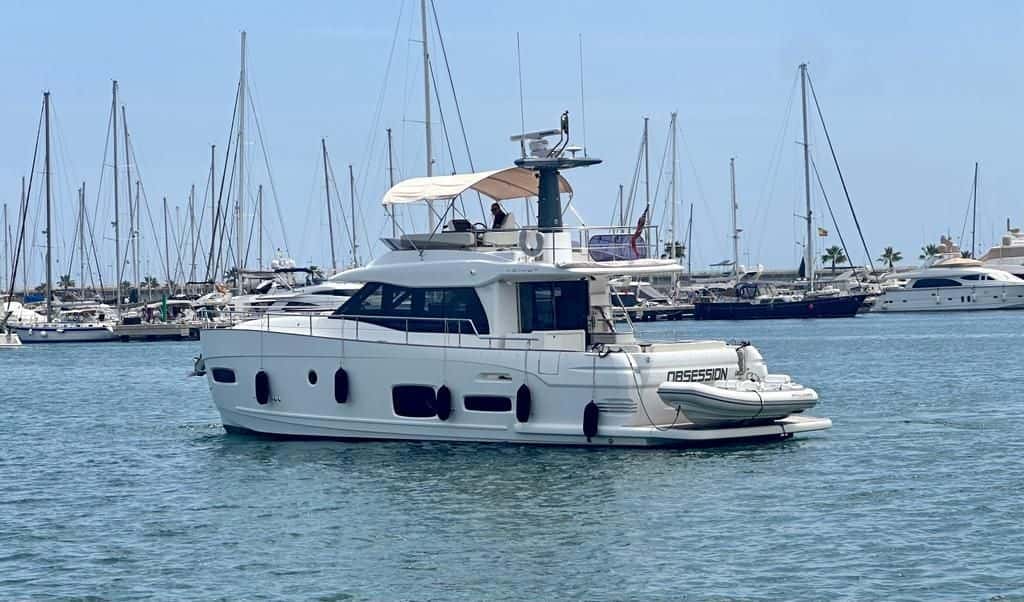

Azimut Magellano 53 for sale in Montenegro!
This semi-displacement flybridge yacht is perfect for long cruises, ensuring smooth sailing in various sea conditions. Designed for comfort and elegance, the Magellano series embodies Italian sophistication with sleek lines and a well-balanced form.
The lower deck offers three spacious cabins plus a utility room that can convert into a fourth cabin. Thoughtfully designed spaces provide maximum comfort for all guests.
Azimut Magellano 53 “OBSESSION” comes fully equipped with premium options, including a Seakeeper gyro stabilizer, watermaker, underwater lights, and an additional crew cabin.
This Magellano 53 is part of our trade-in fleet, and the yacht is now available for sale in turn-key condition, with all service works completed for the 2025 season.
Boat is ready for visits in Tivat, Porto Montenegro. Contact our team to arrange a viewing!
Length
16.90 m / 55.45 ft
Beam
4.70 m / 15.42 ft
Draft
1.44 m / 4.72 ft
Detailed Specifications
| Brand | Azimut |
| Model | Azimut Magellano 53 |
| Name | OBSESSION |
| Year | 2015 |
| Asking price | €799.000 |
| VAT Status | not paid |
| Location | Montenegro |
| Length, m | 16.90 |
| Beam, m | 4.70 |
| Draft, m | 1.44 |

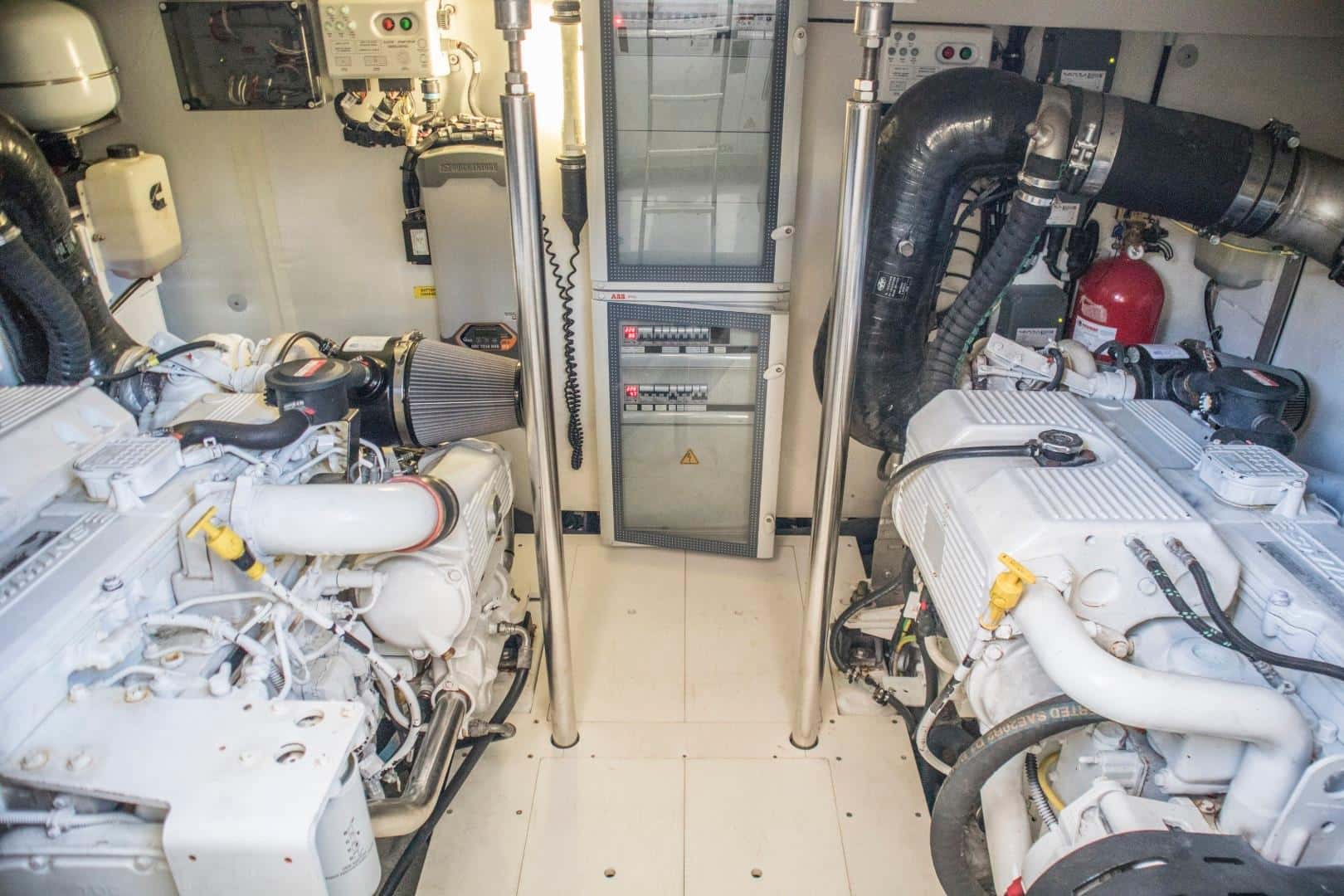

| Installed engines | 2 x 500 hp Cummins QSC 8.3 |
| Engine hours | 1400 |
| Max speed, kn | 23 |
| Propulsion | Shaft (V-drive) |
| Displacement, kg | 30800 |
| Hull type | Semi-displacement |
| Hull material | GRP |
| Superstructure material | GRP |
| Water tanks, l | 700 |
| Guest Cabins | 3 |
| Crew cabins | 1 |
| Flag of Registry | San Marino |
BUY Azimut Magellano 53 “OBSESSION” (2015)
PRICE
€799.000
For any questions please contact our managers (we speak English, German, Russian, Serbian).

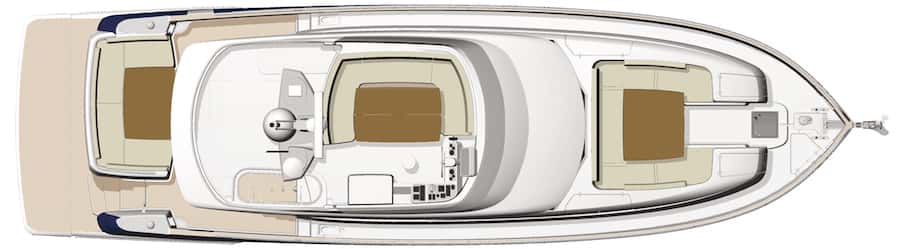

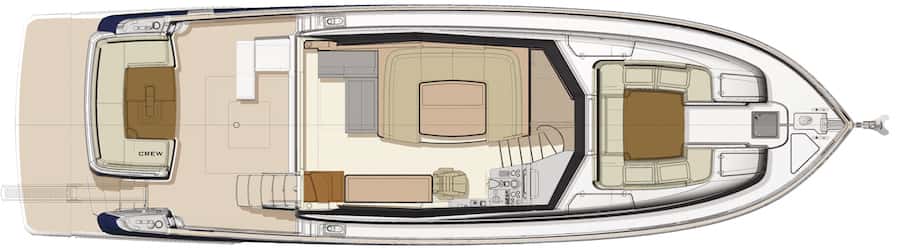

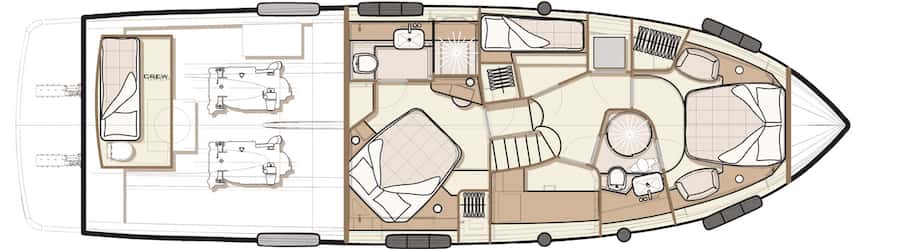

Layout
Boat Layout
Boat Layout
Boat Layout
Standard Equipment
- Cockpit access ladder in GRP and teak
- Stainless steel access handrail
- Stern flybridge handrail, flybridge access protection handrail, flybridge stainless steel liferail
- Watertight access door to flybridge in aluminum and Plexiglas
- Nonskid GRP floor
- Plexiglas flybridge screen
- Stainless steel steering wheel covered in fabric

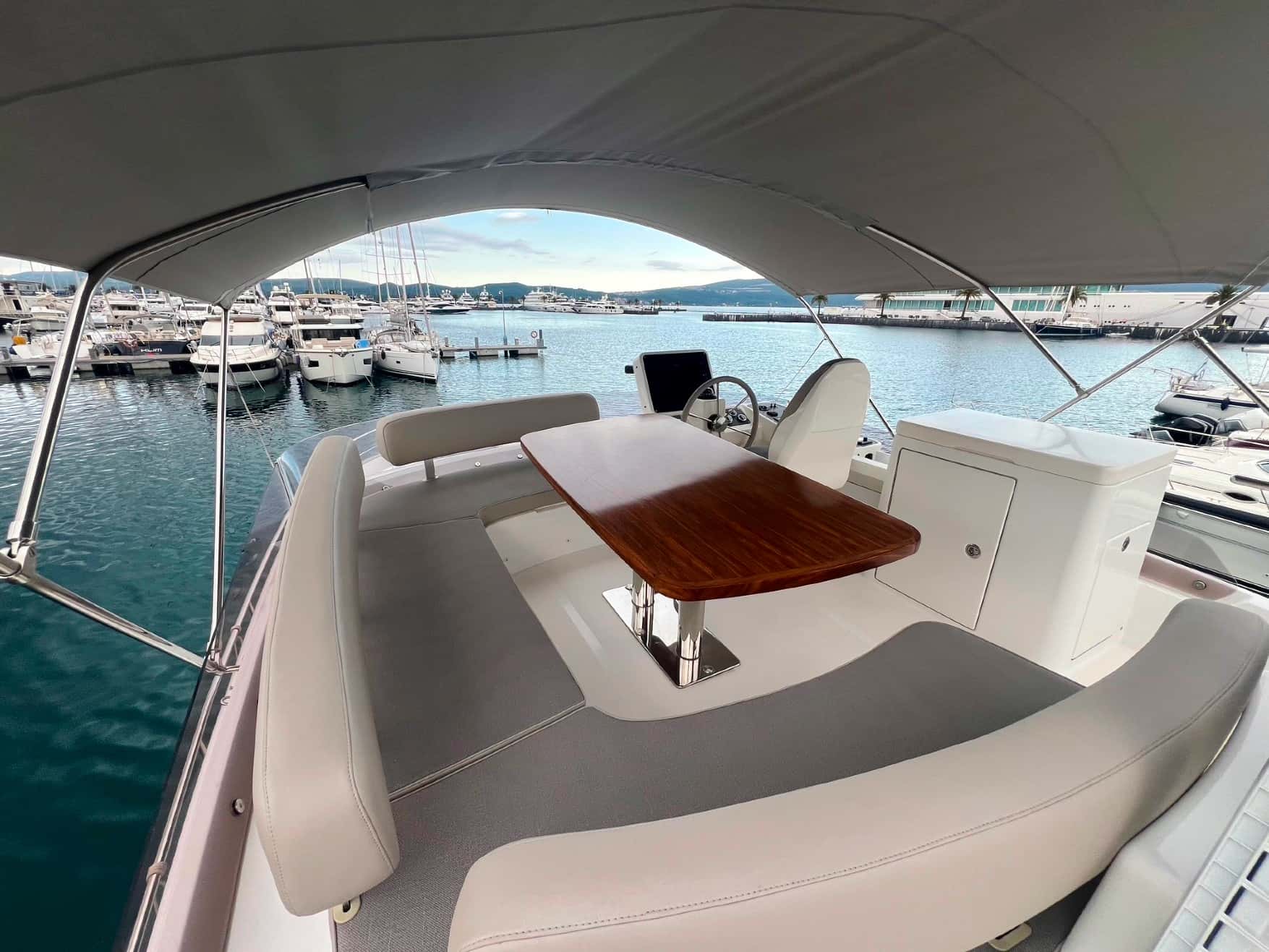

- C-shaped sofa with cushions on port side, with locker below
- Table with teak plane and stainless-steel base
- Central GRP mast carrying lights, antennas, and electronic navigation instruments
- Mast base with storage compartment
- Fixed shower built into the GRP mast, with hot/cold mixer tap
- Cabinet with GRP cover on starboard side, sink with cold water only, and lockers below
- Zone for positioning the life raft (not included) on port side, behind the sofa
- Drainage scuppers
- Manual depth searchlight

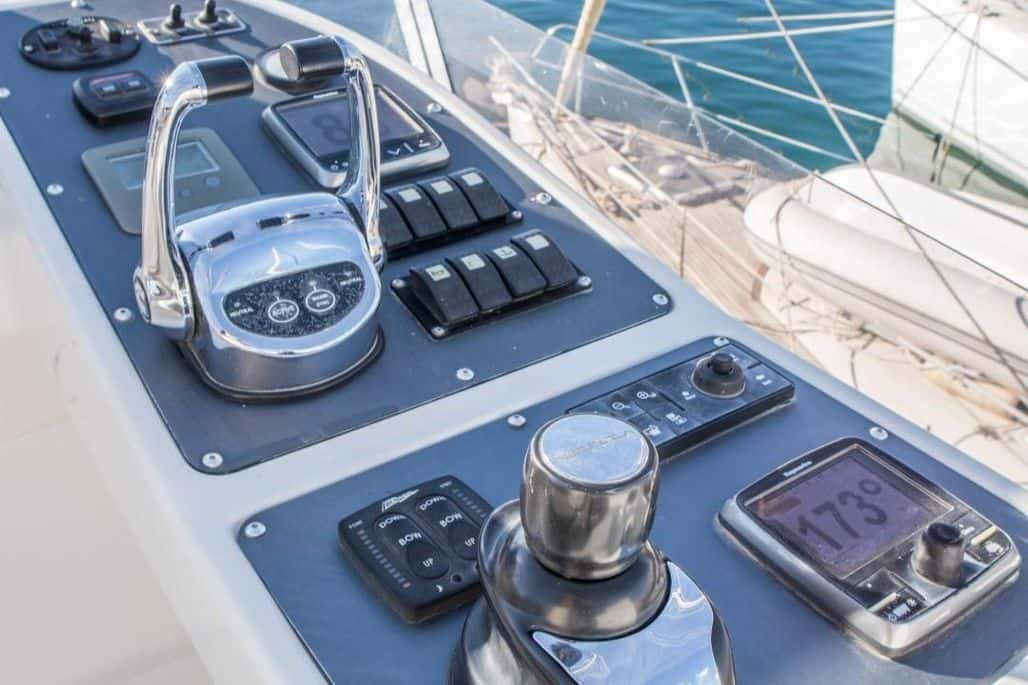

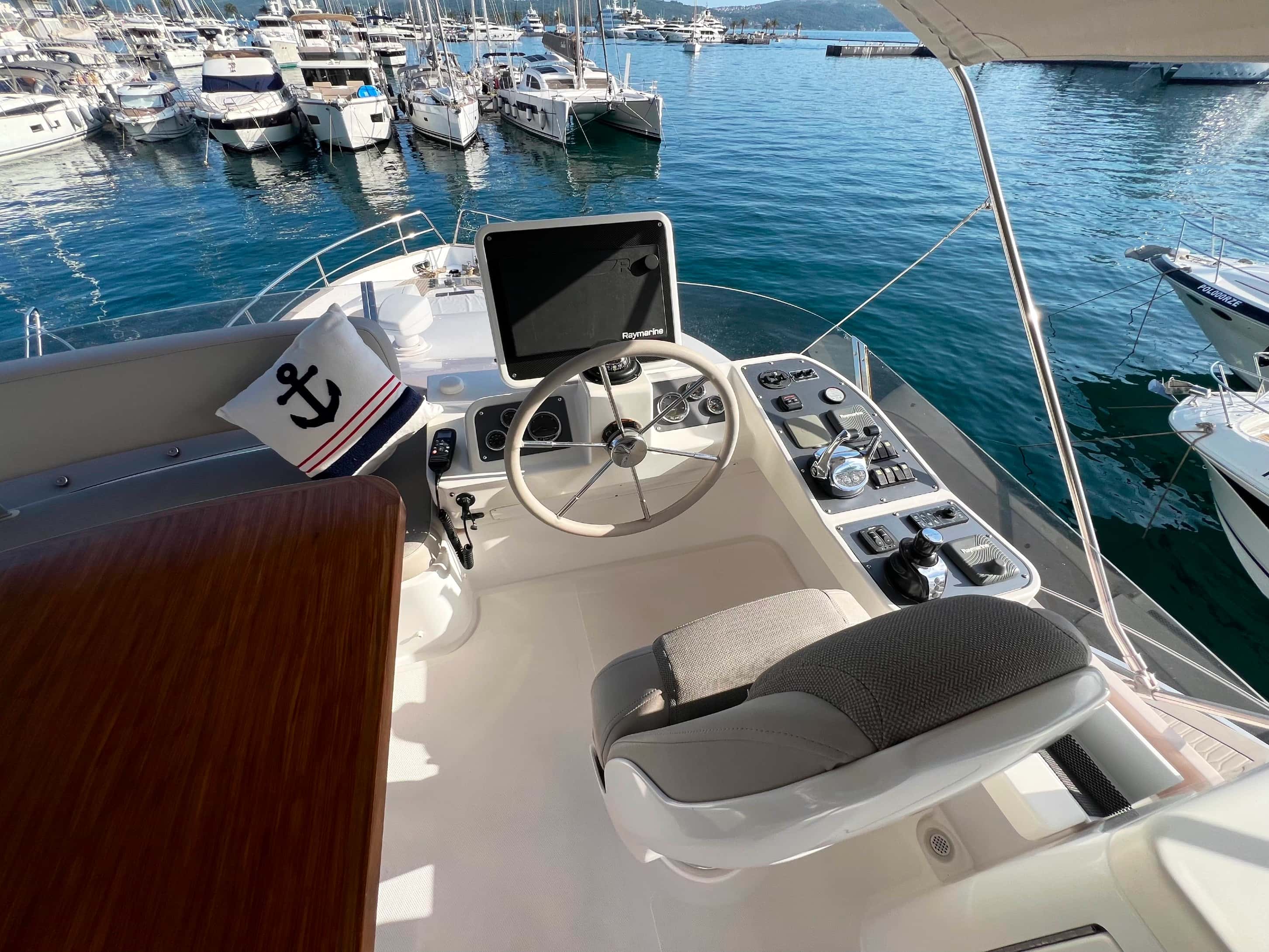

- Flybridge dashboard equipment:
- Bow thruster controls
- Cummins ETS engine remote controls, with speed synchronization
- Horn switches
- Navigation lights
- Flybridge GRP mast lights
- Winch
- Chain washing pump switch
- 12 V socket
- Cummins multi-function instruments – alarm indicator lights

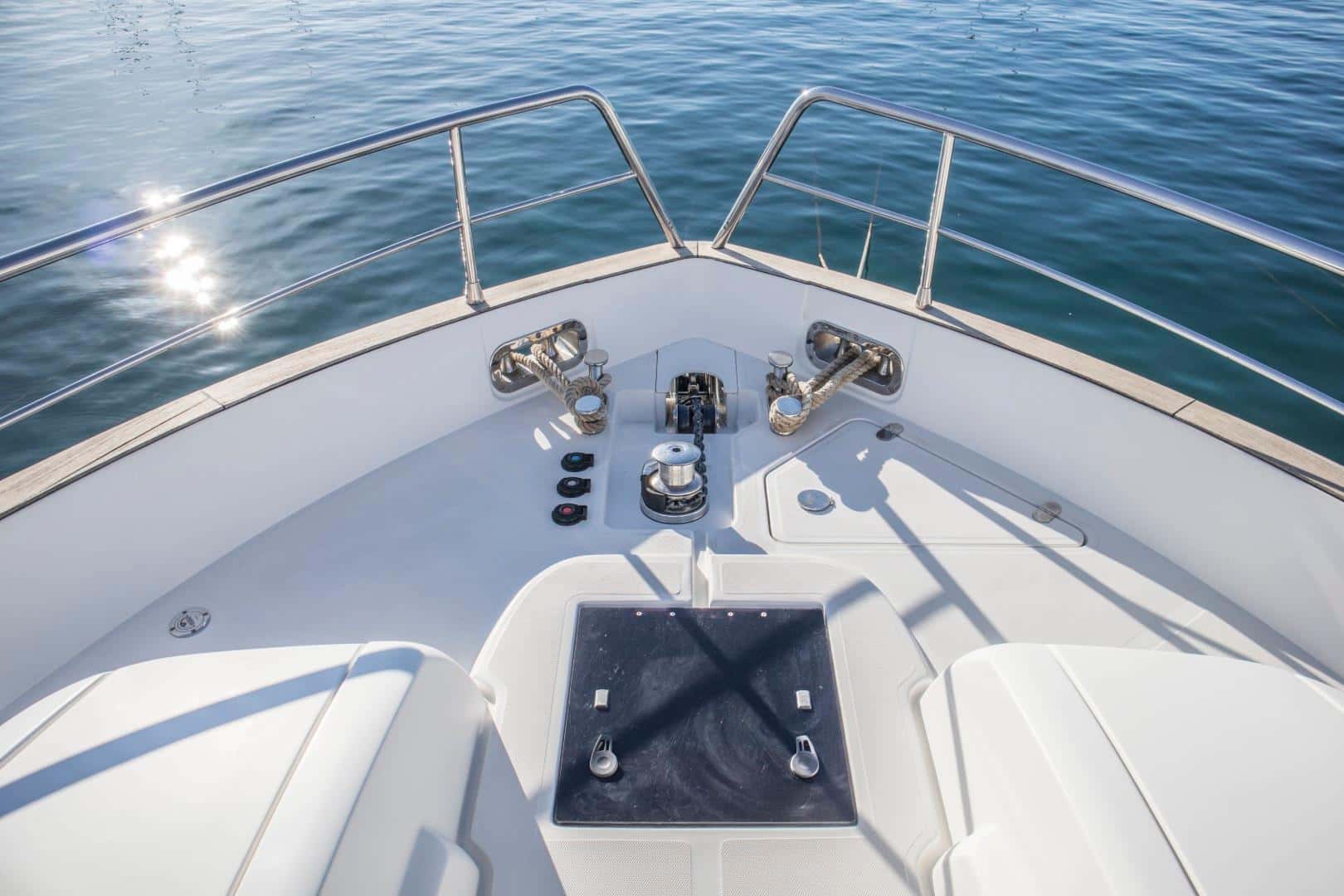

- Anchor chain and fender locker with water drainage
- 25 kg (55.1 lb) galvanized steel anchor
- 75-meter (246’1’) high-resistance gaged chain, diameter 10 mm (0.39 in)
- Bow roller and protection shield
- 1700 W winch
- Two stainless steel T-head cleats
- Two roller hawseholes
- Chain washing system with pedal controls

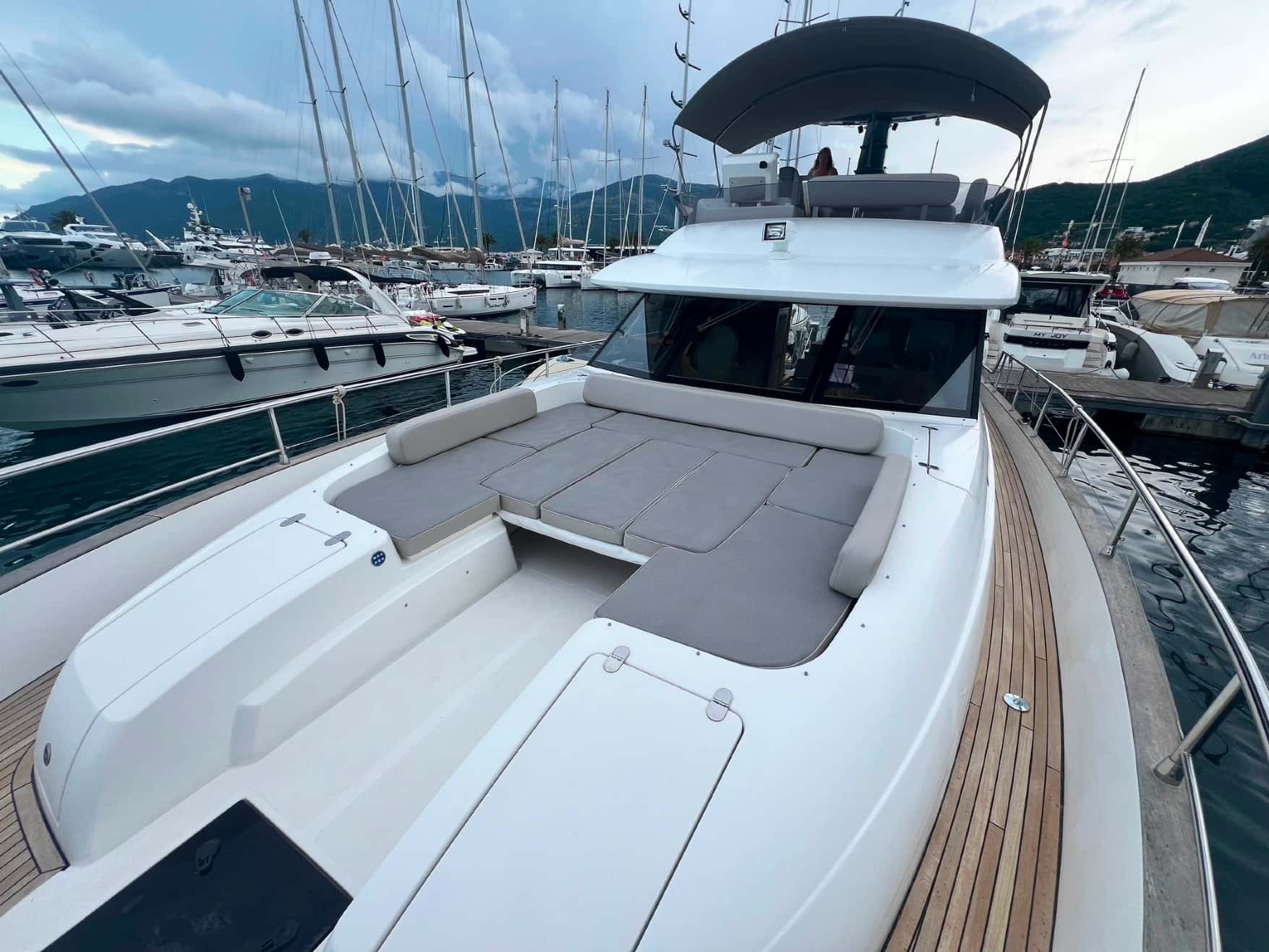

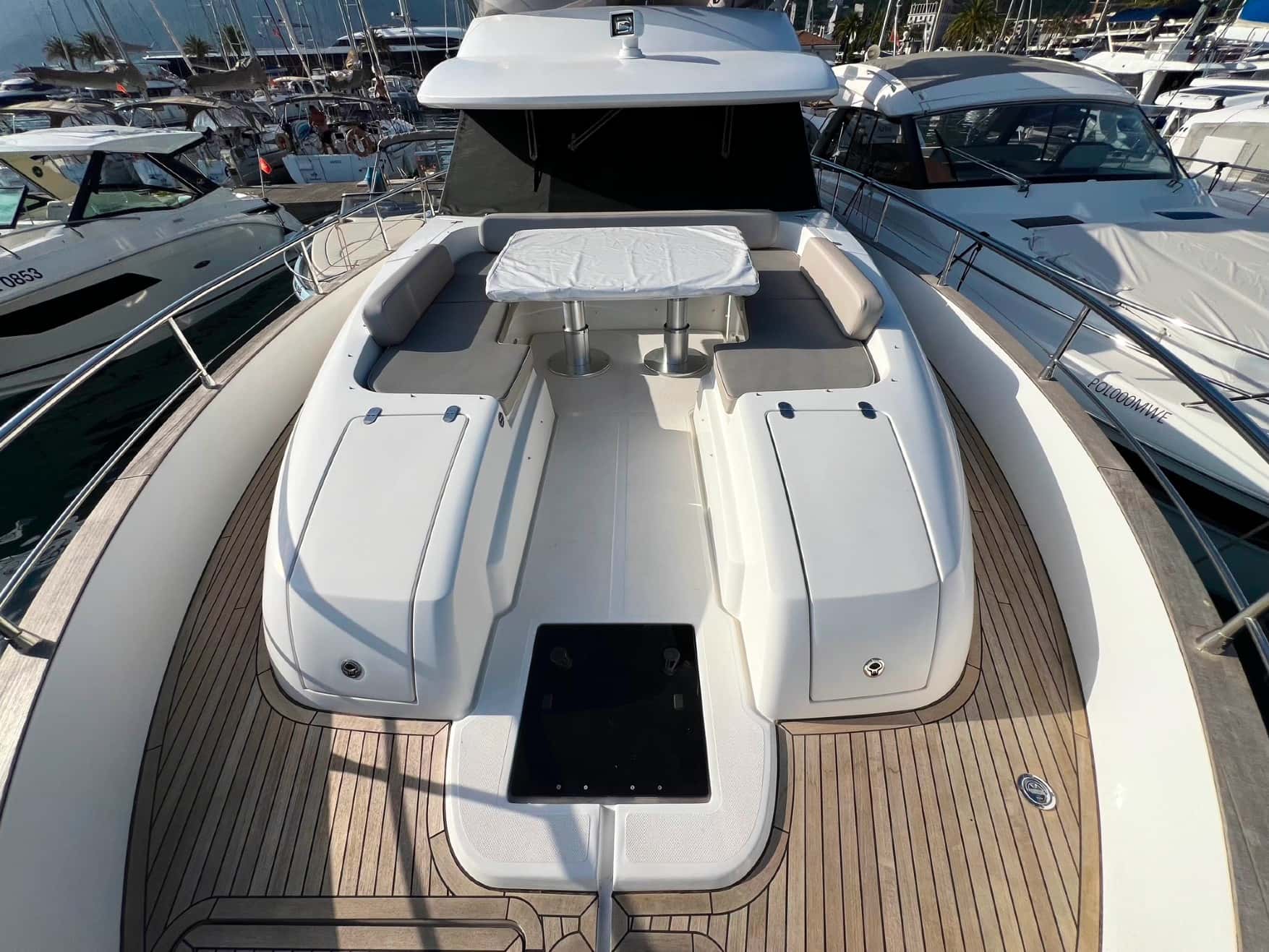

- C-shaped sofa in the bow, with cushions and backrest
- Four external lockers on the sides of the sofa
- Lockers under the bench
- Refueling: two ‘Diesel’ refueling plugs with cover and scuppers
- Fresh water filling: one ‘Water’ filling plug
- Black water outlet: one ‘Waste’ outlet water plug
- Two stainless steel midship cleats on the gunwale
- Nonskid GRP floor
- Stainless steel pulpit, diam. 40 mm (1.57 in)
- Teak gunwale washboard
- Cockpit access through three nonskid GRP steps
- Steel and Plexiglas gate
- Non-slip floor
- Two mooring stations
- One chock and cleat in stainless steel for each mooring station
- Stainless steel door, with watertight level three and tempered flat glass door with two sliding panels

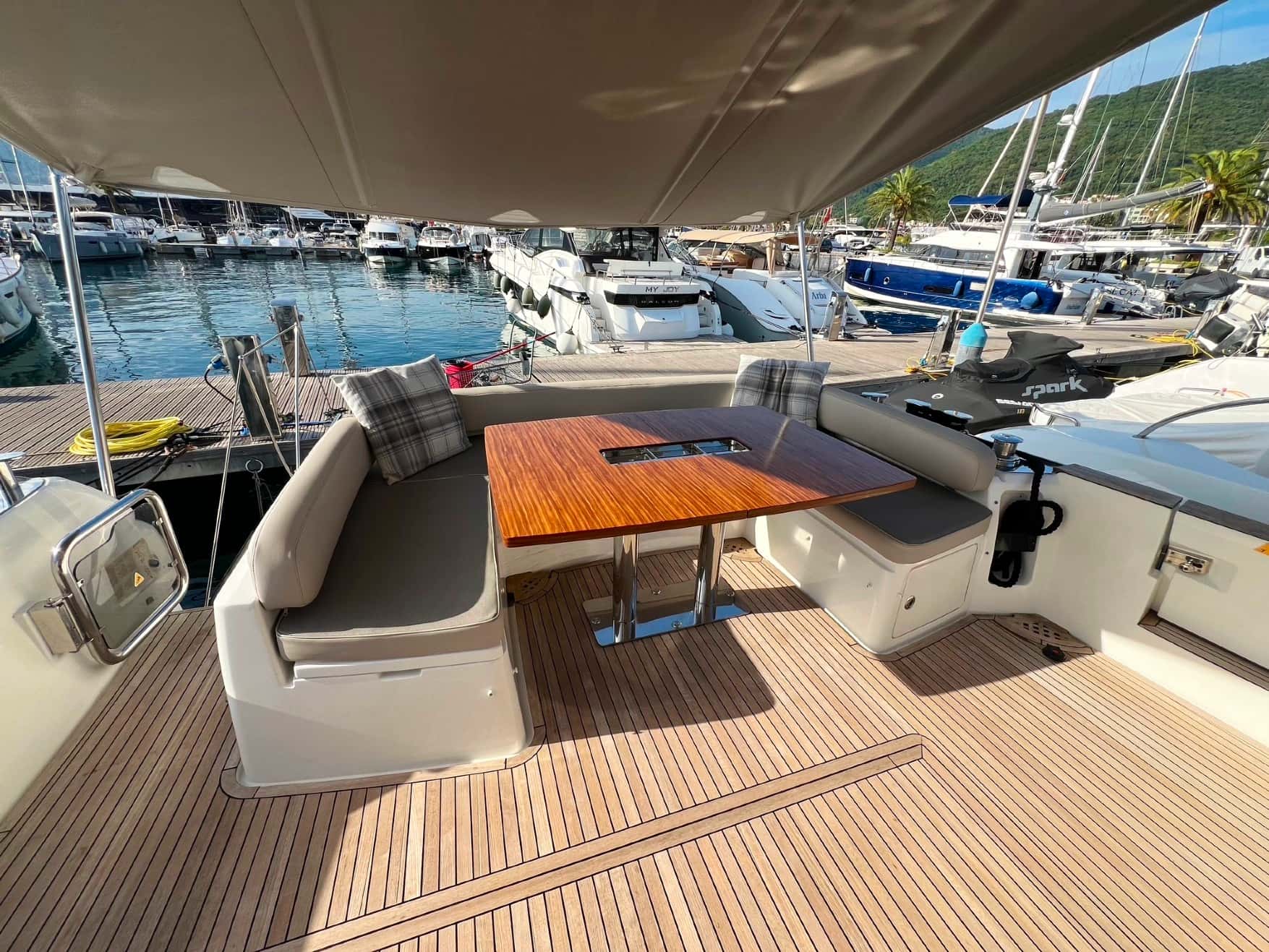

- Five-seater C-shaped sofa provided with cushions and backrest with lockers under the bench on aft side port and starboard
- Engine room access via door in cockpit floor
- Engine unloading door
- Scuppers
- Lighting with watertight spotlights
- Cabinet built into the flybridge ladder, with a large locker
- Rudder hold access door from starboard side bench
- Fire extinguishing controls
- Walkway lights on cockpit access steps
- Shower head with hot and cold water, starboard side

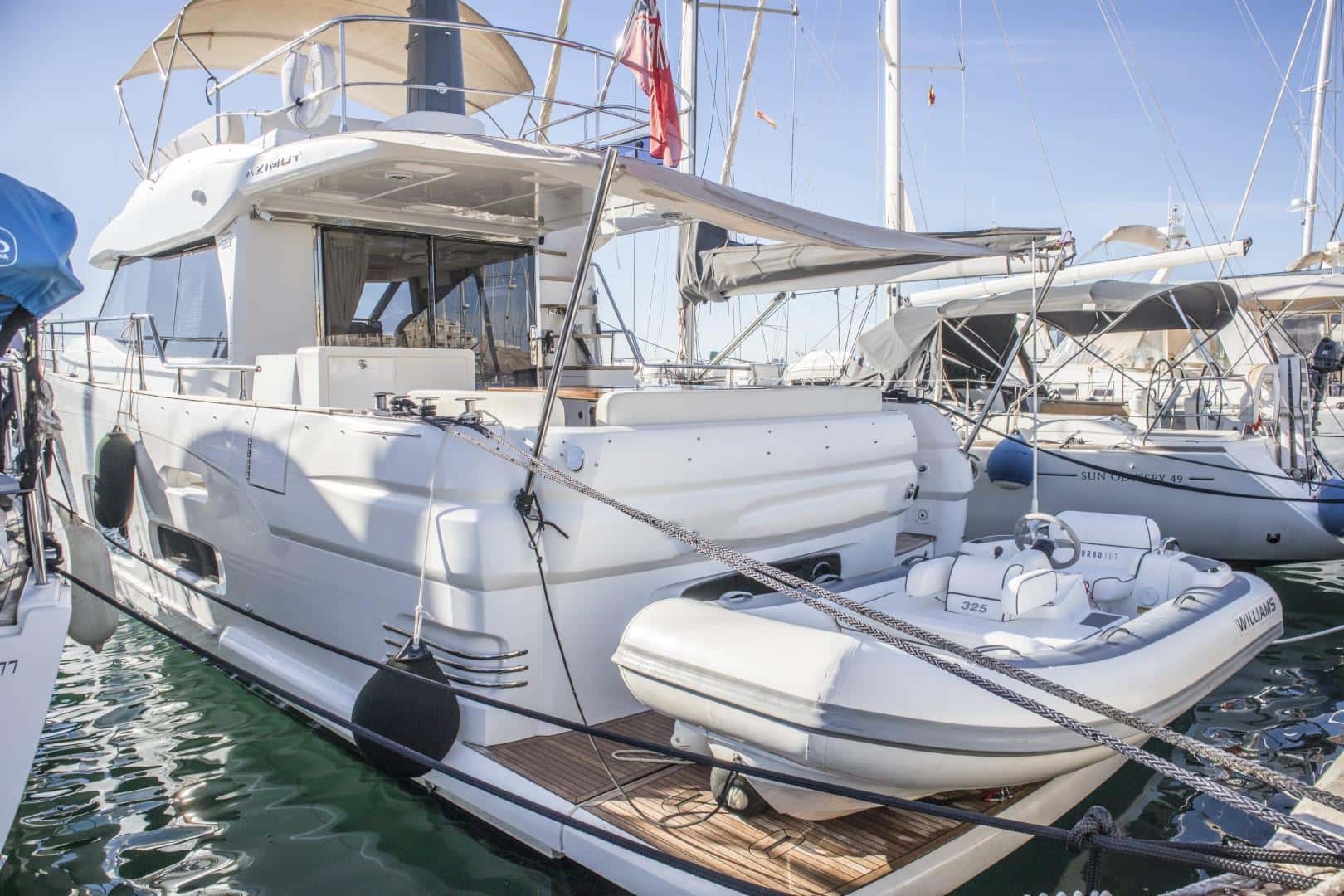

- Lifting platform in GRP with reinforcement frame in polyurethane:
- Width 4300 mm (169.29 in)
- 1205 mm (47.44 in) depth of mobile part
- Total depth of stern platform 1700 mm (66.93 in) (lifting platform + fixed part)
- Electro-hydraulic tender lift mechanism in electro-polished steel
- Locker for shore power sockets
- Nonskid GRP floor
- Stainless steel manual swimming ladder with teak steps and retractable handle built on starboard side

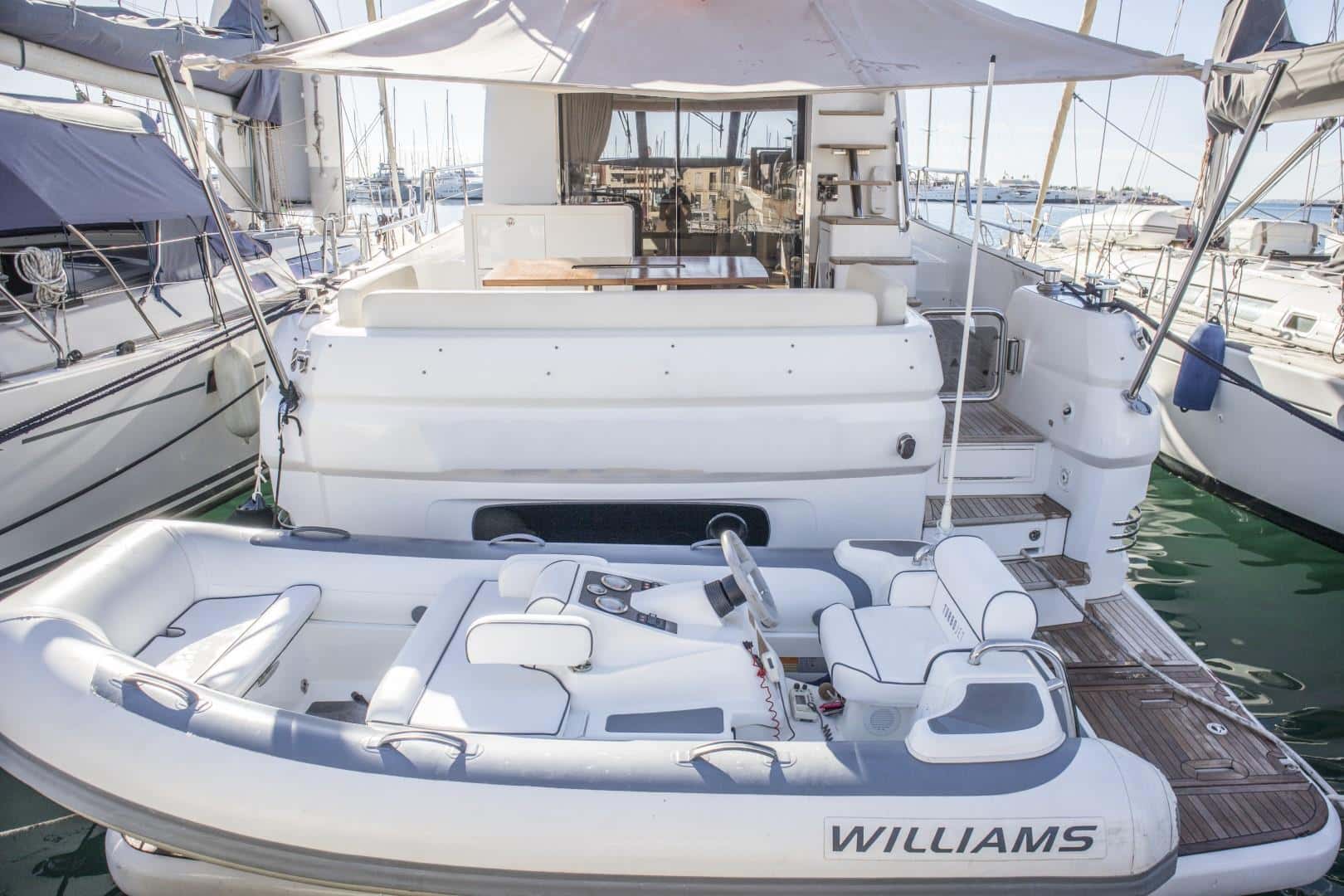

- Open housing for the tender (not included)
- Installable tender (opt):
- Maximum dimensions of tender – platform: 3.20 x 1.70 m
- Lift payload excluding GRP, teak and ladder: 380 kg (837.8 lb)

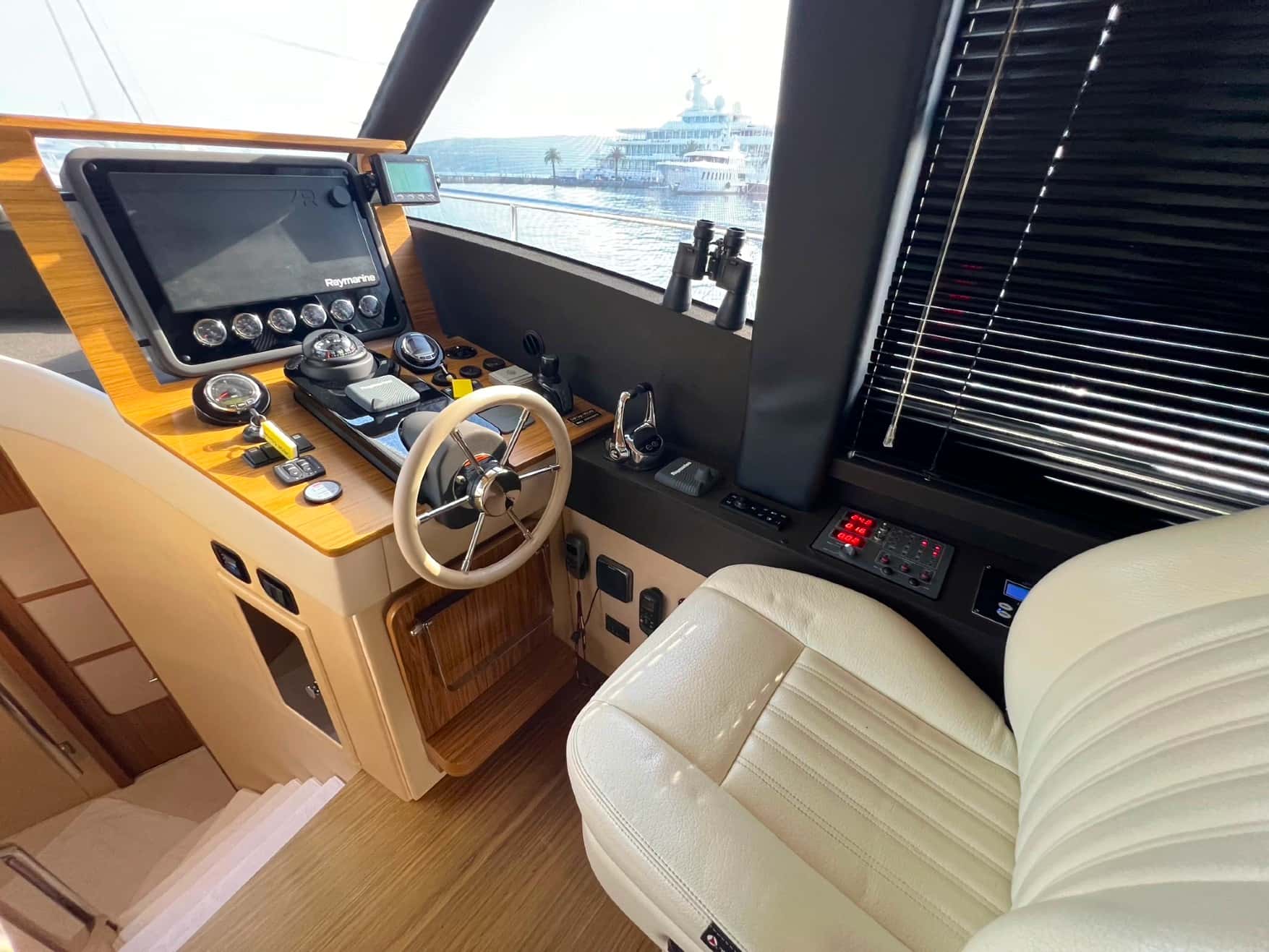

- Helm seat with armrests and manual horizontal slide adjustment. Electric piston for up-down movement
- Foldaway footrest
- Manually-operated window on starboard side
- Steering wheel
- The wheelhouse includes:
- Bow thruster controls
- Cummins ETS engine remote controls, with speed synchronization
- Horn, navigation lights, wiper switches
- Activation of bilge pumps
- Emptying of black and gray water tanks
- Engine room ventilation
- 12 V socket
- Chain washing pump switch
- Analog indicators of diesel tank level
- Engine start-up
- Rev counter
- Hour counter
- Engine pressure gauges and thermometers
- Ammeters
- Alarm indicator lights

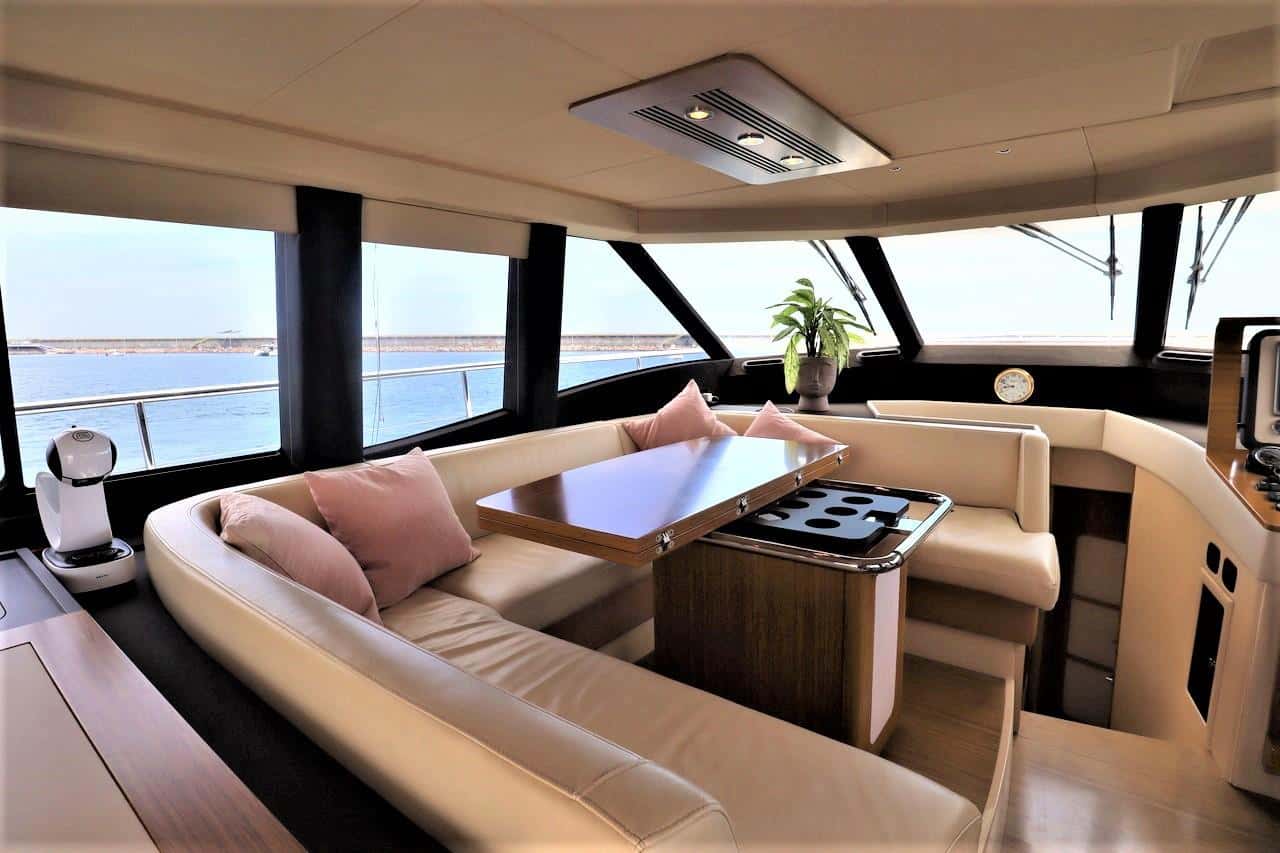

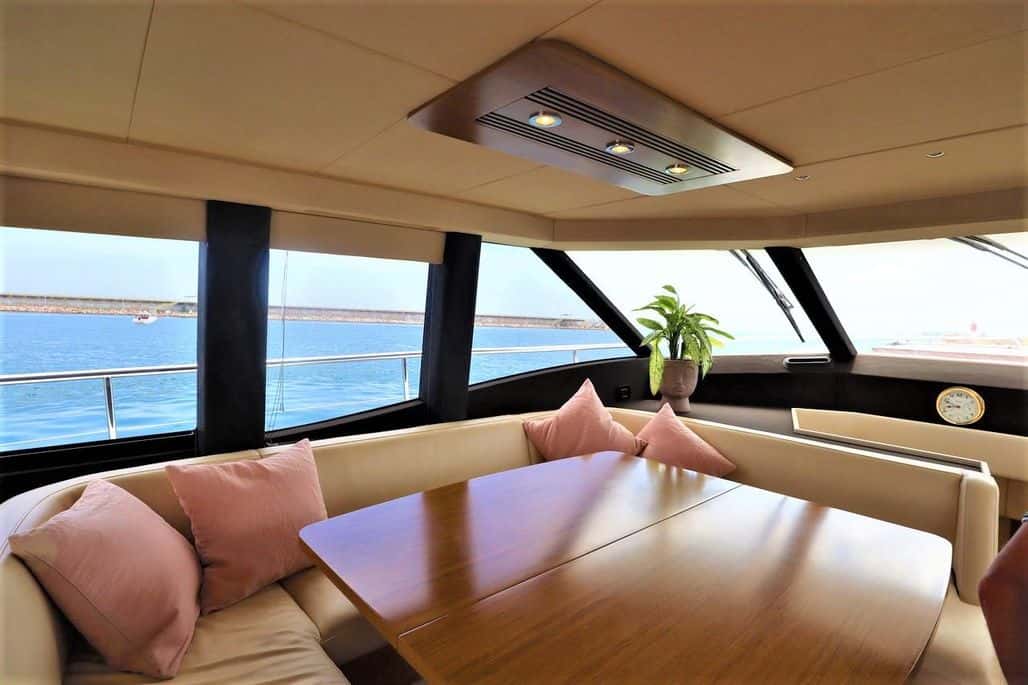

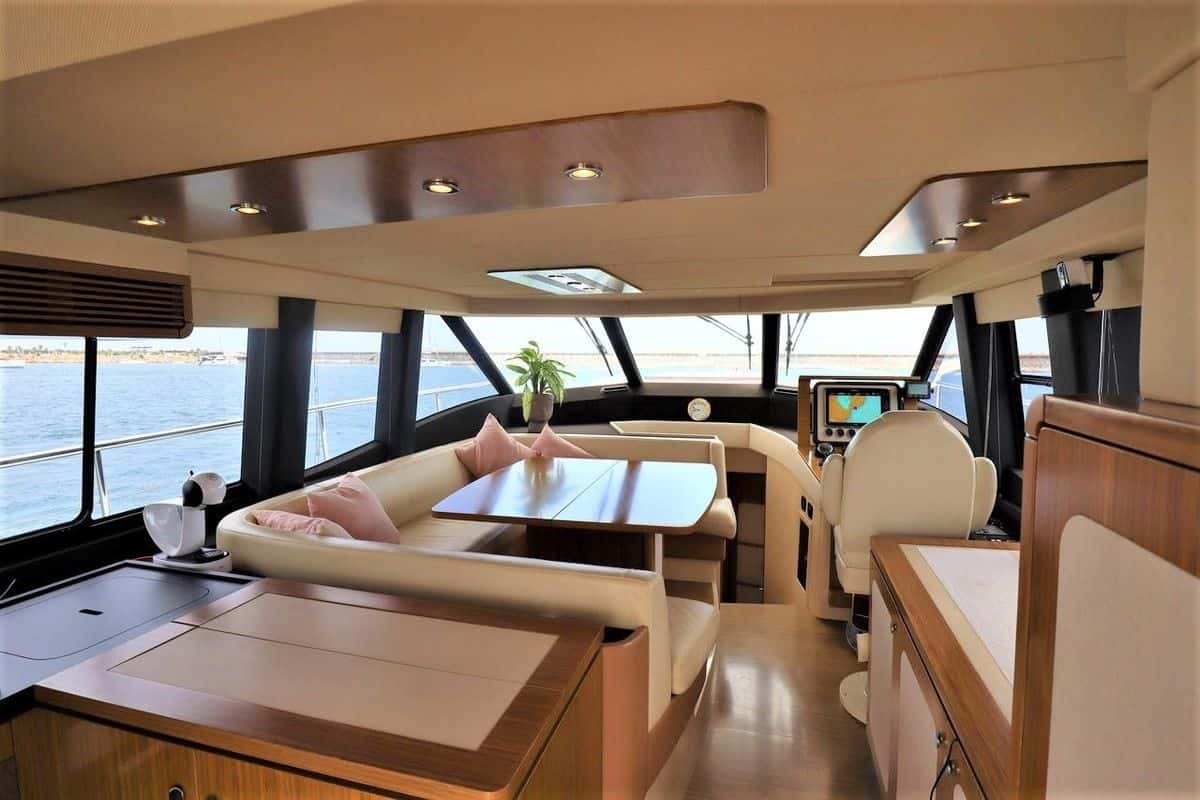

- Sofa on port side, with six/eight seats
- Dining table with foldaway wooden top for six people on port side. When the top is folded away, the handrail is visible and a cup holder and storage compartment become available
- Three-panel storage cabinet on starboard side, with housing for crockery and drawers inside the central panel; Cabinet top in solid walnut (covered)
- TV system with aerial socket in saloon
- Ceiling and walls covered in fabric; wooden inserts in the ceiling
- Manual Venetian blinds for side windows, and sliding curtain for saloon door
- 220 V sockets
- Carpeted floor

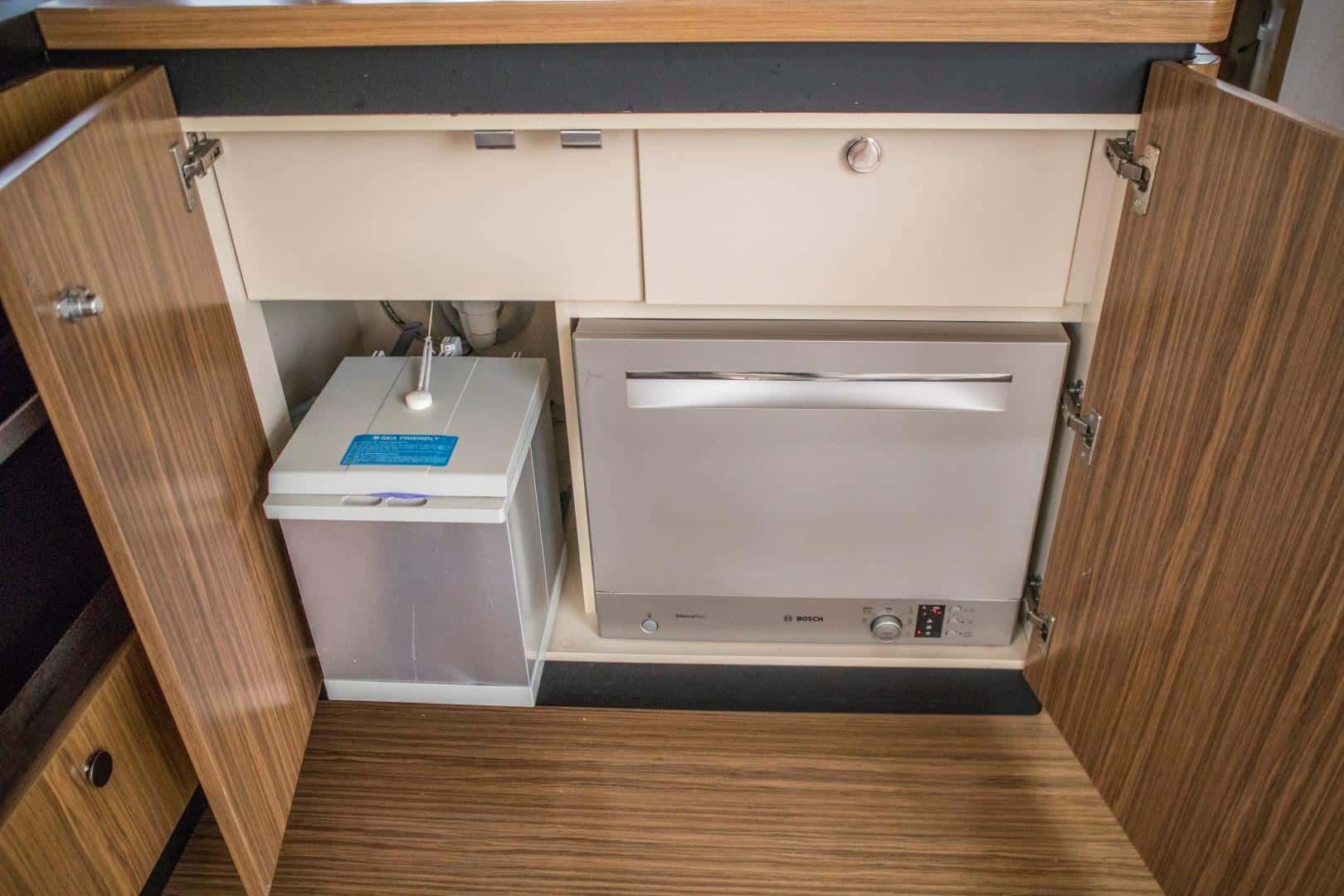

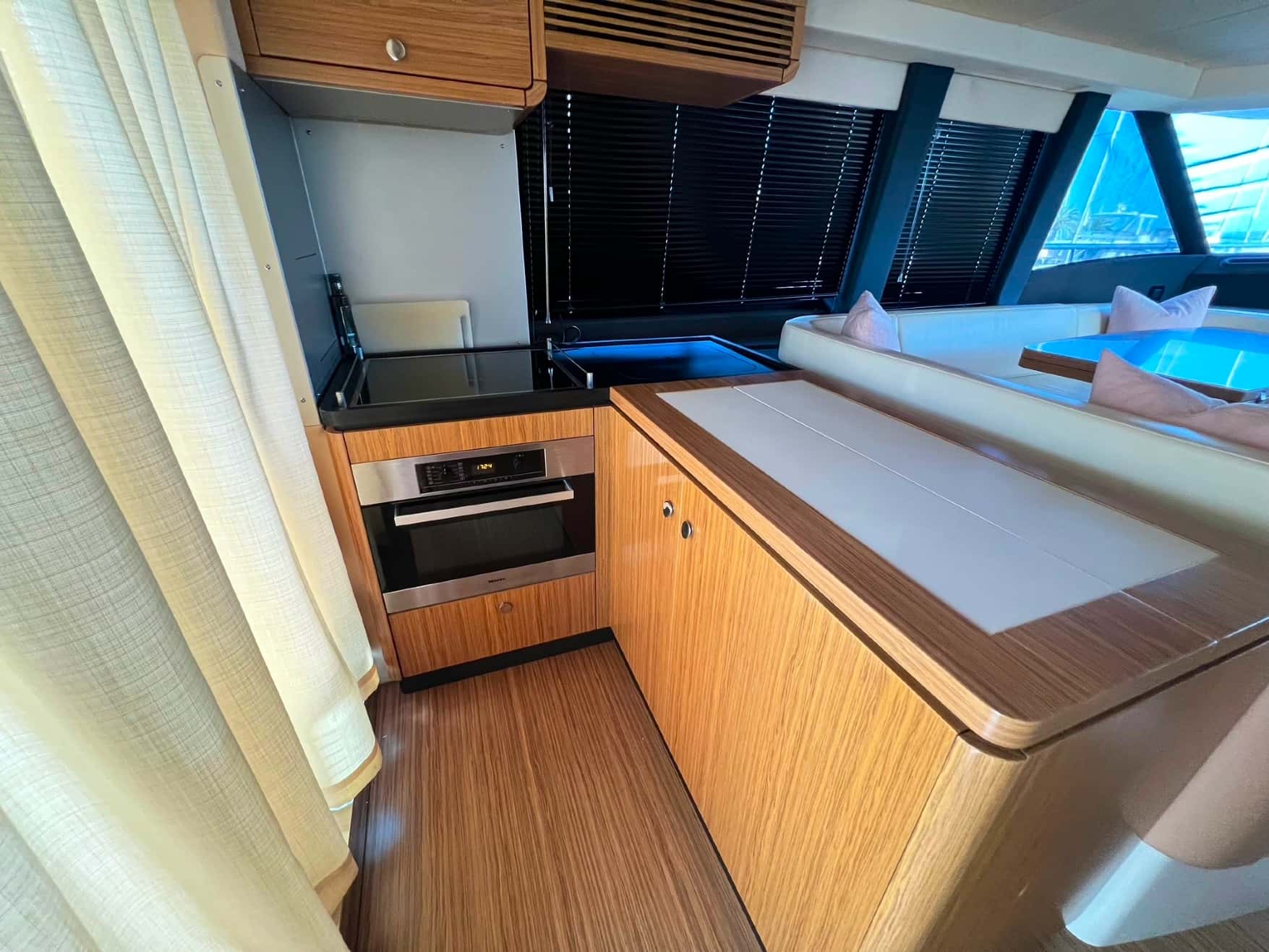

- L-shaped galley located at the entrance to the saloon from the cockpit, on port side
- Fridge cabinet on starboard side, at the entrance to the saloon from the cockpit
- Laminated foldaway cover for black worktop with sink and hot/cold mixer tap
- 20 l (0.71 cu.ft) microwave oven + grill
- Ceramic glass four-hob range and silicone pot holder
- One cutlery drawer under the worktop
- Drawer under the oven
- 24 V extractor for galley suction
- Manually openable window on port side
- One wall unit
- Rubbish bins for sorted waste below the sink
- 220 V socket
- Upright refrigerator/freezer
- Located midship, with access from ladder descent
- Handrail for stairway
- Large, full-height wardrobe on port side, with space for washer-dryer (not included)
- Wardrobe with shelves under the ladder
- Carpeted floor
- Spotlights

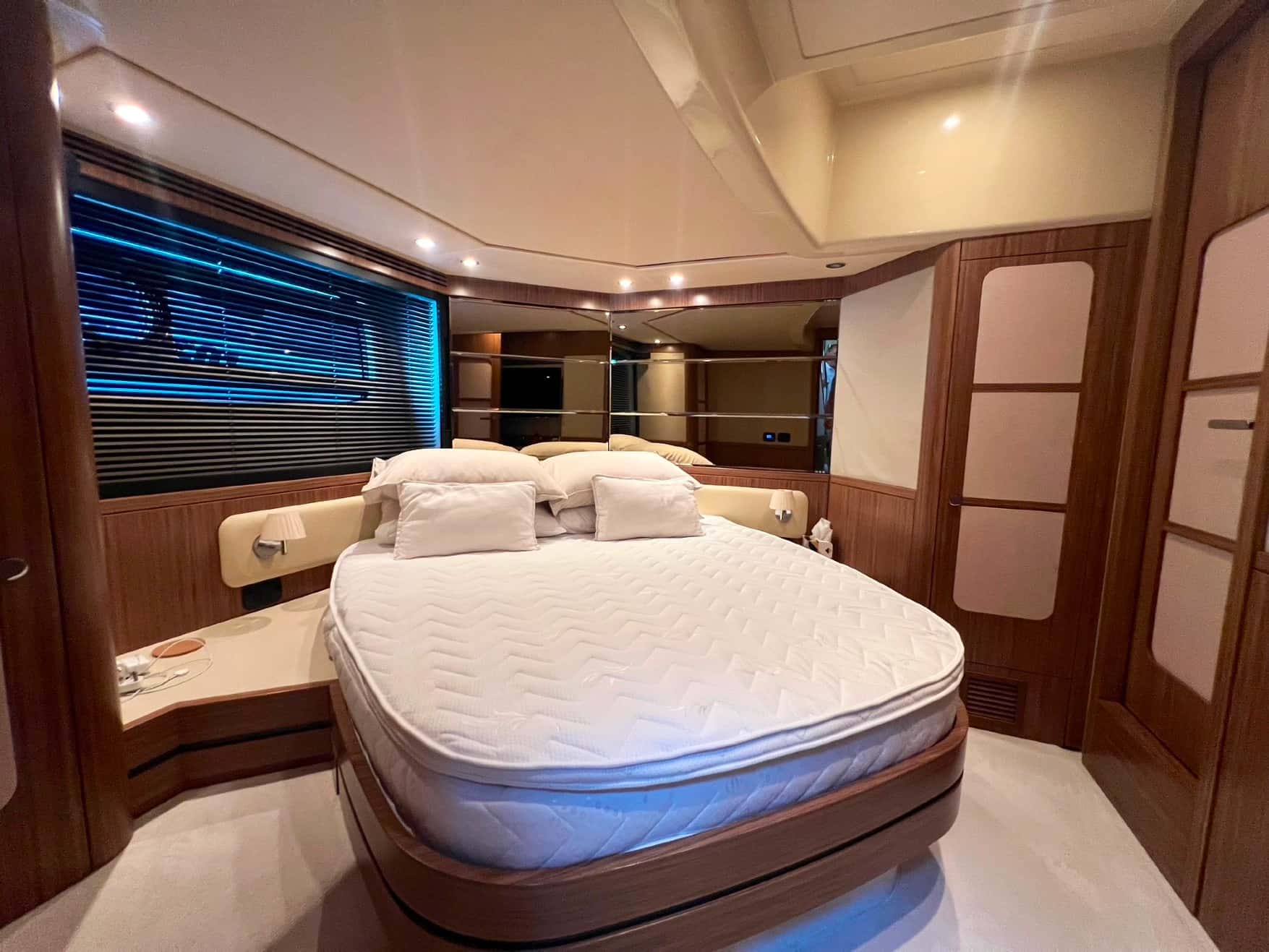

- Located midship
- Diagonal double bed with headboard on starboard side
- Foldaway bed with access to the locker below
- Padded headboard with panel to access a storage compartment with mirror and two wall lights
- Two-panel storage cabinet with shelf on port side
- Wardrobe with hanger bar and drawer below, on port side
- Wardrobe with shelves on starboard side
- Large windows on starboard side, with openable portlight
- Venetian blind
- Spotlights
- Carpeted floor
- Direct access to head on port side
- 220 V sockets

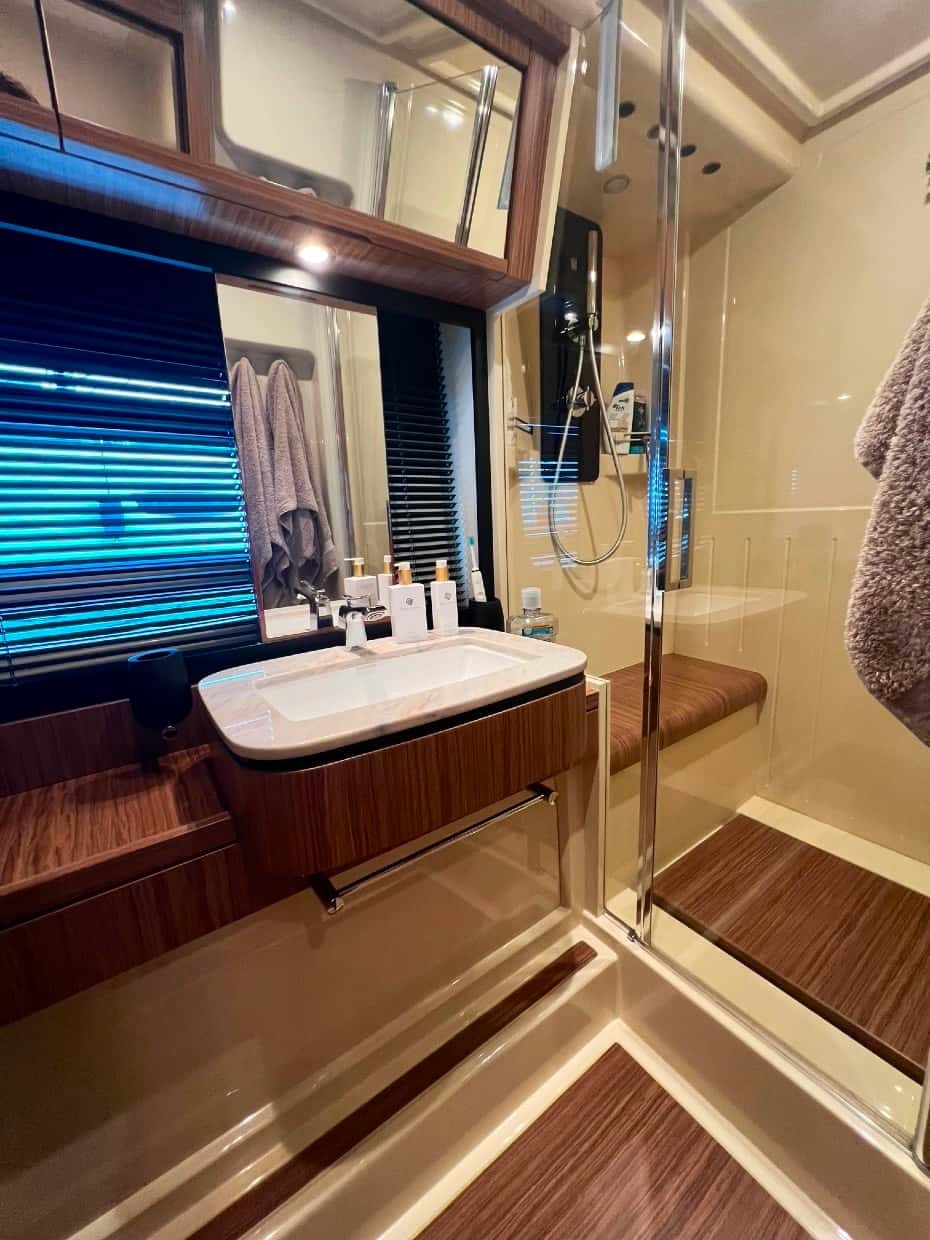

- Located on the port side of the owner’s cabin, with access from the owner’s cabin
- Washbasin top in marble
- TECMA toilet
- Chromed mixer tap
- Separate shower with seat; flat door in tempered glass
- Shower column
- Two storage wall units
- Mirror
- Venetian blind
- 220 V socket
- Laminated floor (walnut finish)
- Head air extractor: forced suction from the shower ceiling panel
- Head accessories:
- One toilet brush
- Two hanger bars
- One roll holder
- One handrail doubling as a towel-holder

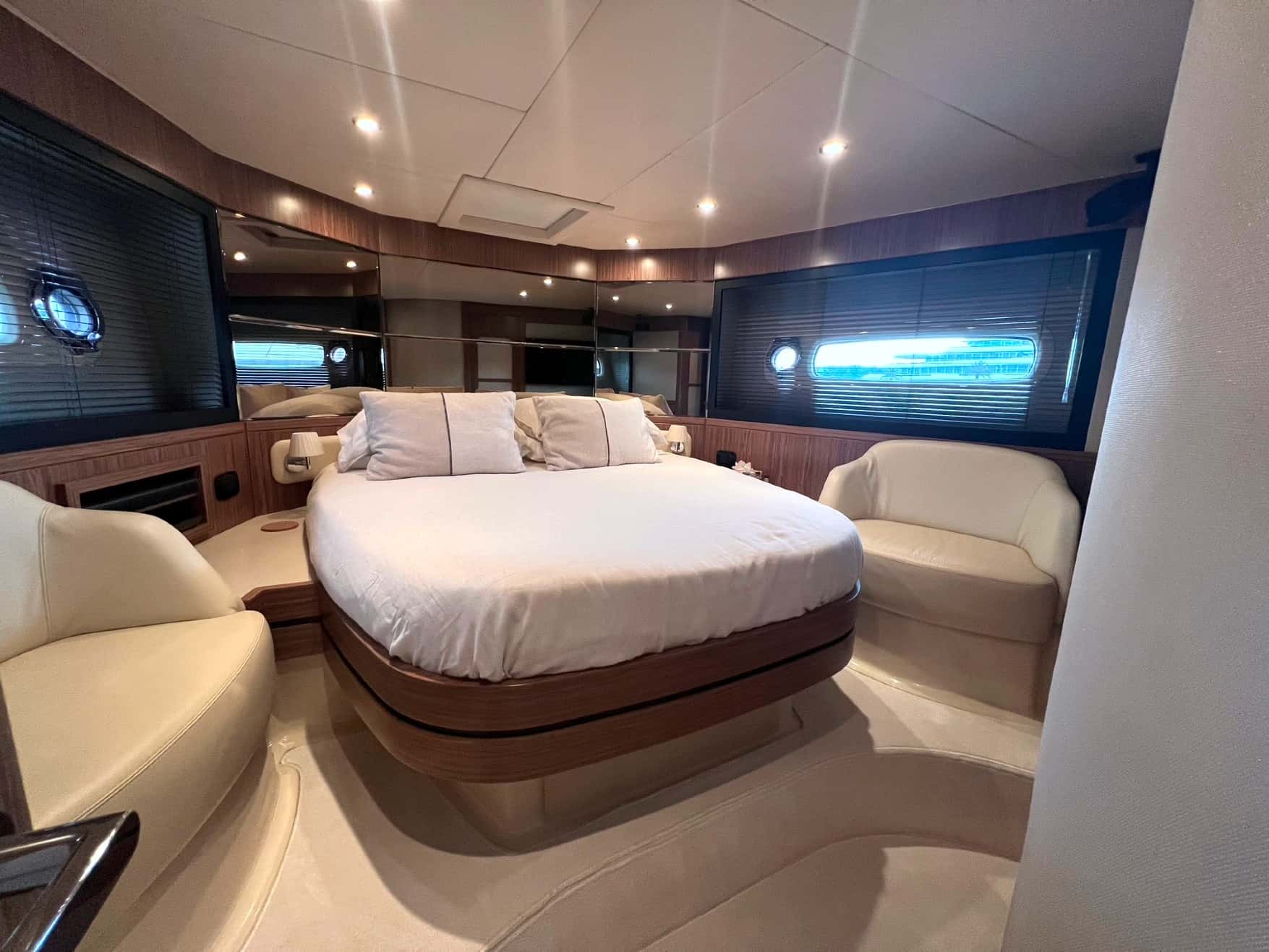

- Located at the bow
- Central double bed
- Foldaway bed for accessing the locker below
- Two armchairs at the sides of the bed
- Wardrobe with hanger bar and shelves on port side
- Large windows on both sides, with openable portlights
- Venetian blinds
- Carpeted floor
- Hatchway for accessing the fore sunbed area
- Spotlights
- 220 V sockets
- Direct access to VIP / guest head

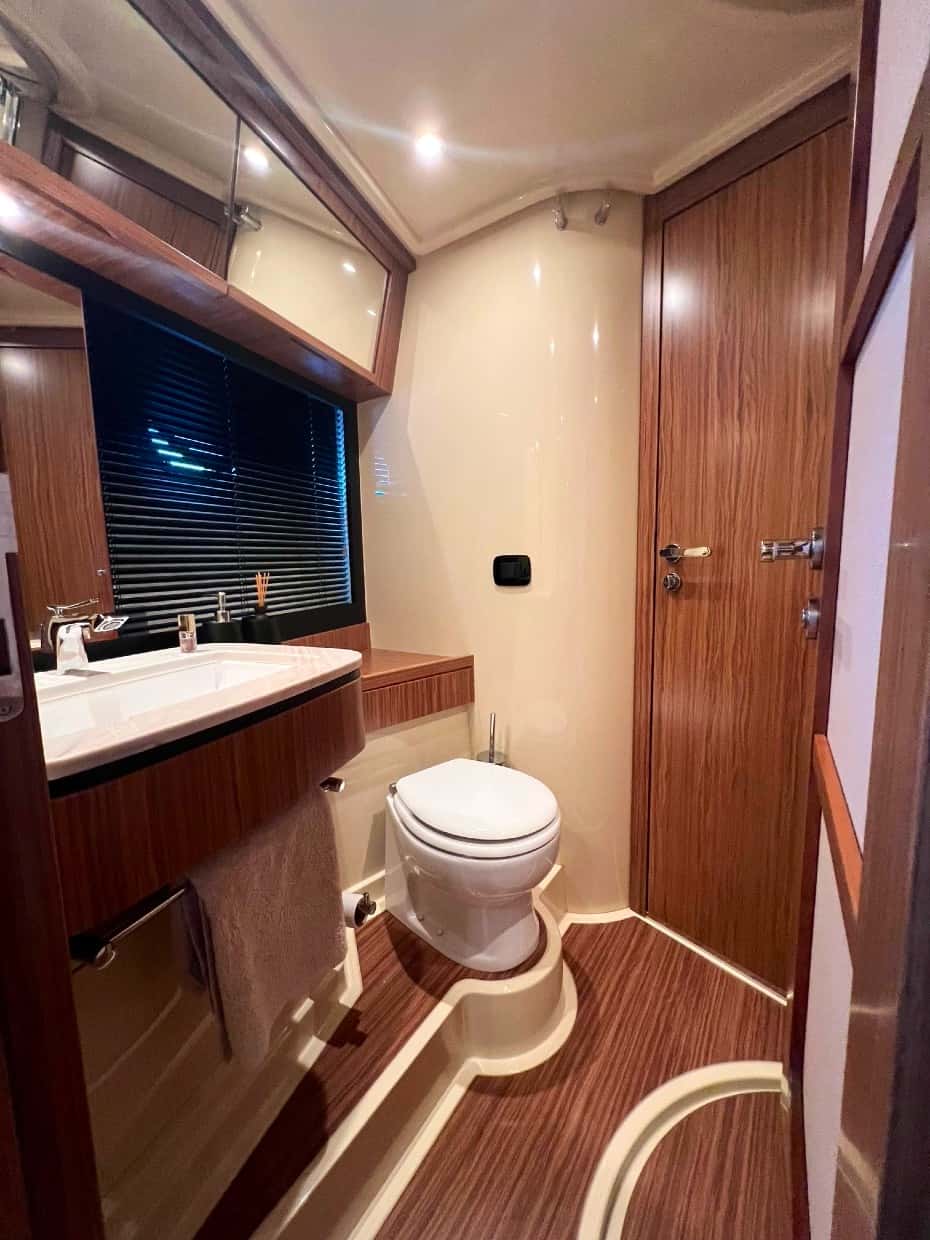

- Located abaft of the VIP cabin, on starboard side
- Direct access from the VIP cabin or from the lobby
- Washbasin top in marble
- Chromed mixer tap
- Wall unit with two panels above washbasin
- Mirror with spotlights
- TECMA toilet
- Circular shower enclosure with Plexiglas panel
- Round openable portlight with Venetian blind
- Laminated floor (walnut finish)
- 220 V socket
- Head air extractor: forced extraction (from the shower ceiling panel)
- Head accessories:
- One toilet brush
- Two hanger bars
- One roll holder
- One handrail doubling as a towel-holder

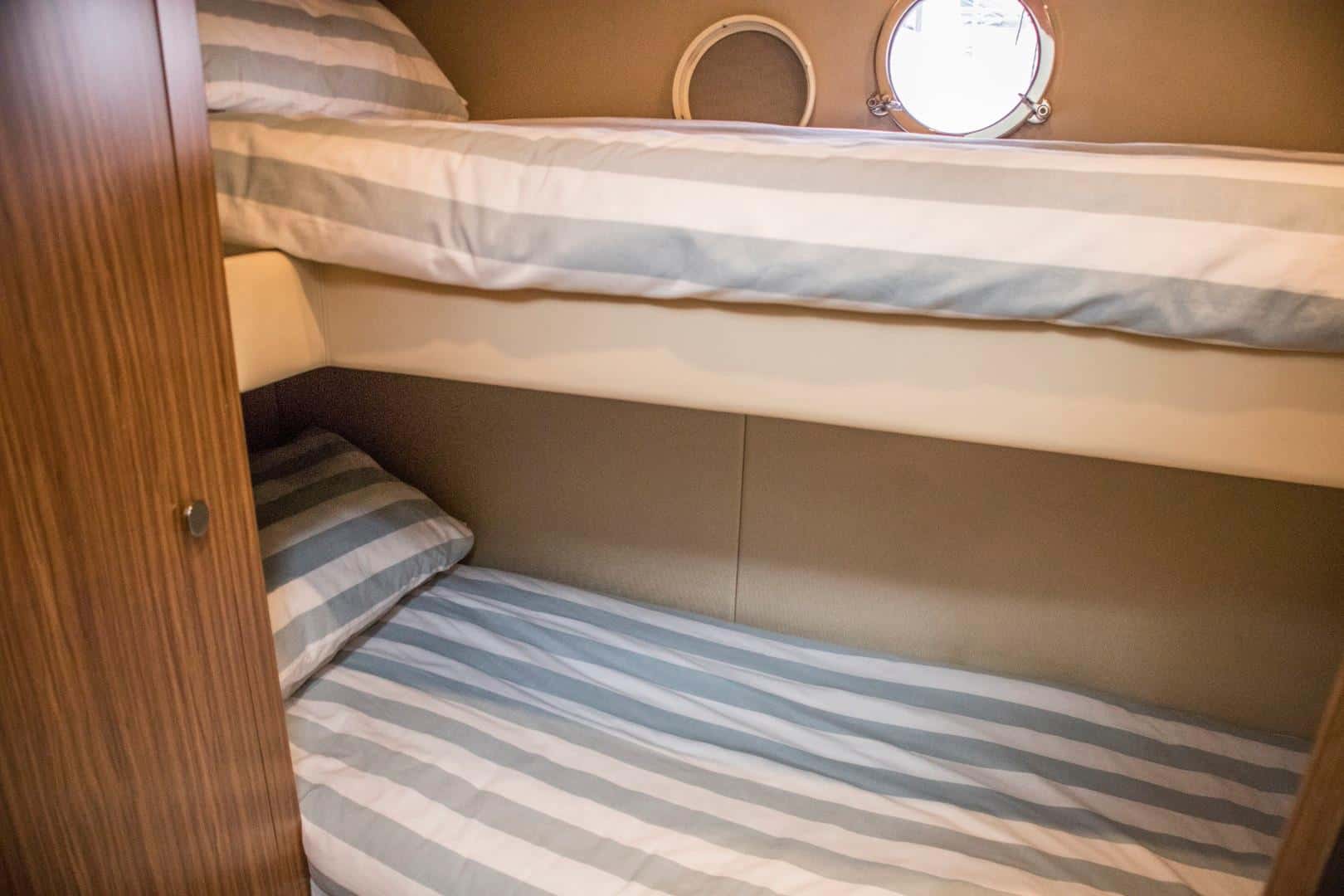

- Located on the port side, with access from lobby
- Two bunk beds
- Wardrobe on stern side of the cabin
- Openable portlight with Venetian blind
- Carpeted floor
- Spotlights
- Adjustable reading lights
- 220 V socket
- Located on starboard side, with access from lobby
- Wardrobe on stern side of the cabin
- Large, open storage compartments
- Worktop above storage compartments can be used as base for extra bed (not included)
- Openable portlight
- Carpeted floor
- Spotlights
- 220 V socket
- Located at stern
- Access from cockpit bench, starboard side
- One single bed
- Large window astern, with openable portlight
- Wardrobe
- Spotlights lighting
- 220 V sockets
- TECMA toilet
- Washbasin with pull-out mixer tap for showering
- Shower with anti-spray curtain and grating
- Onboard voltages:
- 230V-50Hz AC
- 24V DC
- 12 V DC (for VHF equipment and cigarette lighter socket)
- The main boards are in the wheelhouse, engine room, and cabin access stairway
- The power circuit breakers for protecting the 220 V and 24 V utilities are in the panel to the right of the ladder leading to the lower deck. This panel also contains the 220 V AC shore or generator source selectors.
- The main panels in the engine room contain additional power circuit breakers for protecting the various 24 V DC and 220 V AC utilities; two panels are located on the fore bulkhead and one in a central position and a stern.
- The alarm panel is on the console on the right side of the wheelhouse
- Zinc anodes

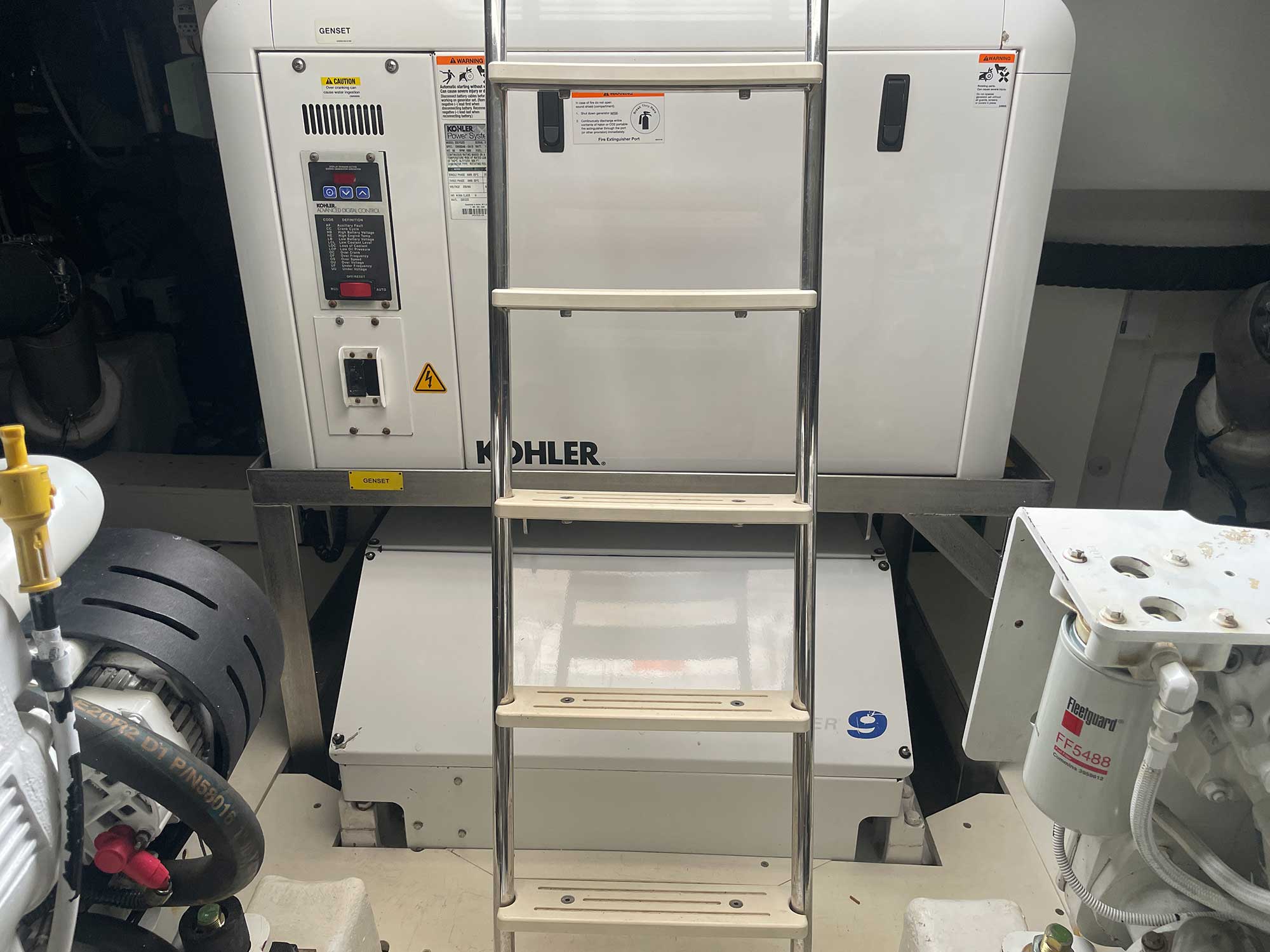

- 3.5 kW – 50 Hz generator is provided
- One shore power socket, 50 A, astern
- Set of six 24 V – 270 Ah batteries, for services
- Set of two 24 V – 90 Ah batteries, for engines
- 12 V – 70 Ah battery, for generator
- Electronic battery charger 80 A (220 / 110 V)
- Battery charger for generator 20 A (220 / 110 V)
- AC sockets: EU type
- DC sockets: cigarette lighter type (wheelhouse, flybridge)
- 24 V watertight LED lighting for outside and LED for inside
- Wheelhouse:
- HELMSMAN magnetic compass 12 V / 24V
- Raymarine Bronze Package
- Flybridge:
- HELMSMAN magnetic compass 12 V / 24V
- Raymarine Bronze Package
- Three automatic bilge pumps (dinette, crew cabin, engine room), with controls on the wheelhouse
- One electric bilge pump in owner’s cabin
- One manual bilge pump in owner’s cabin
- One manual bilge pump in cockpit’s locker
- Three level alarms
- Rapid pumping of engine room via engine water pump
- One cylinder with nozzles on engines and marine gears
- Activation handle in cockpit, and emergency key
- Two communicating tanks, 1600 l (422.4 US.liq.gal.) each (total capacity 3200 l (844.8 US.liq.gal.)), in aluminum
- Electronic indicator on the wheelhouse (starboard tank)
- Optical gage on port tank
- Two single filters (settling) (RACOR 900) for engines + one filter PFG20 NAUCO for generator
- Two refueling plugs on walk arounds
- Two vents on bulwarks
- Remote diesel shut-off (engine and generator) via 24 V solenoid valve
- Fuel drawing tap on starboard tank
- One 700-liter (184.8 US.liq.gal.) stainless steel tank below the bed of the VIP cabin
- Water caps on fore port side
- Level sensor with electronic gage in wheelhouse
- One tank vent on bulwark
- Pressure pump
- 60 l (15.84 US.liq.gal.) water heater, 220 V
- Hot/cold water line: heads, galley, bathing platform shower head, flybridge shower; Cold water only in flybridge washbasin; cold water only in engine room
- Fresh water toilet flushing
- System that can be isolated by ACORN manifolds
- Two communicating tanks, 175 l (46.2 US.liq.gal.) each, in polyethylene
- Level sensor (two-level)
- Two tank vents on bulwark with anti-odor filters (one for each tank)
- One macerator pump
- Suction point from deck walk around
- TECMA toilet (with macerator pump): All toilets discharge into a tank
- Sea outlet from tank (manual only)
- 175 l (46.2 US.liq.gal.) polyethylene tank, under the lobby
- Gray water outlet directly into the sea from bulwark risers (for flybridge washbasin)
- Level sensor (three levels) with indicator on alarm panel in wheelhouse
- Water discharge: from tank (automatic / manual)
- Diaphragm pump
- Fancoil condensation discharge into auxiliary collection tank and main tank
- Engine cooling system: two dynamic seawater intakes, 2.5’
- Generator cooling system: submerged outlet: one dynamic 1’ seawater intake with filter and valve
- Air conditioning cooling system (not included): submerged outlet: one dynamic 1’ seawater intake with filter and valve
- Chain washing pump: seawater
- Gas exhaust system: submerged engine discharge and minimum bypass on bulwark
- Insulated stainless steel raisers
- Exhaust pipes: structural muffler in GRP
- Water/fumes separator for generator, with side exhaust
- Access from engine room via cockpit door and ladder
- Engine unloading door in cockpit
- Battery housing: one box for engine batteries and one box for service batteries
- Rooms:
- Ventilation of owner’s head: forced extraction 24 V
- Ventilation of VIP / Guest head: forced extraction 24 V
- Ventilation of galley: 24 V extractor fan
- Engine room:
- Air intakes on hull (grating + separator filters)
- Natural air intake
- Forced extraction with two 24 V fans Ø 250 mm (9.84 in)
- Sound-proofing
- WORLD SPEC water system version
- One compressor unit with 60,000 BTU dual compressor, located above the port diesel tank
- One seawater pump with relevant seawater intake in engine room
- Distribution:
- Dinette: two evaporators, 9,200 BTU (on starboard side next to refrigerator, and on port side above sofa ceiling)
- Wheelhouse and windscreen: one evaporator, 18,000 BTU (inside lobby wardrobe)
- Owner’s cabin: one evaporator, 9,200 BTU (starboard wardrobe)
- VIP cabin: one evaporator, 9,320 BTU (port wardrobe)
- Third cabin: one evaporator, 6,200 BTU (in wardrobe)
- Utility Room: one evaporator, 6,200 BTU (in wardrobe)
- Lobby: one evaporator, 4,800 BTU (in wardrobe)
- Crew cabin: one evaporator, 4,800 BTU (in wardrobe)
- A/C controls: five power cards and three auxiliaries cards
- Remote control panel in dinette and controls in individual cabins
- One telescopic boat hook
- Five mooring lines
- Fender lines: 18 m (59′)
- One anchor chain stopper
- Six fenders
- Six black fender covers
- One Owner’s manual
- One AZIMUT document folder
- One wooden boat model
- One AZIMUT warranty service booklet
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- Four floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
- One stainless steel scheduled maintenance kit
- One pin wrench for locking stainless steel pins
Optional Equipment
- Generator 20 kW
- Air conditioning BTU 60.000
- Double Racor filters for main engines
- Xenta joystick control for engines and bow thruster
- Watermaker
- Electric mooring winches in cockpit
- Electric searchlight
- Openable side handrails for side access to the boat
- Additional searchlight control at lower helm
- MIELE appliances
- Cockpit table with foldable top
- Hi-lo table with sunbathing cushions in bow
- Teak on cockpit deck
- Dimmered lights in salon and cockpit
- Mosquito nets for potholes
- Safe in master cabin
- Wooden floor in salon, dinette and helm station
- Raymarine Gold package (Flybridge: Raymarine E165, GPS, autopilot, I70 4”, VHF Ray240E, radar antenna Raymarine HD 4kW 48 mm; Main helm station: chartplotter Raymarine E165, autopilot, i70 4”, VHFRay240E)
- Seakeeper 9 Stabilizer
- Fly table with Hi-Lo system
- Folding bimini top on fly
- Teak deck on swim platform
- Telescopic gangway
- Cockpit furniture with sink, icemaker and barbecue
- Dishwasher in galley
- Refrigerator on flybridge
- Washer-dryer combo unit
- A/V Entertainment system
- Williams 325 Jet Tender

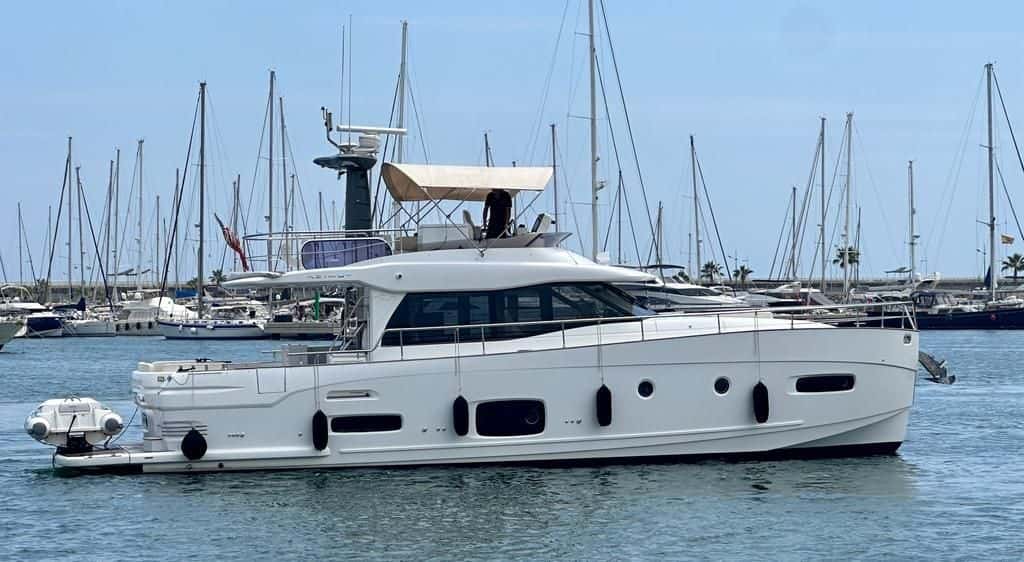

BUY Azimut Magellano 53 “OBSESSION” (2015)
PRICE
€799.000
For any questions please contact our managers (we speak English, German, Russian, Serbian).
Available
